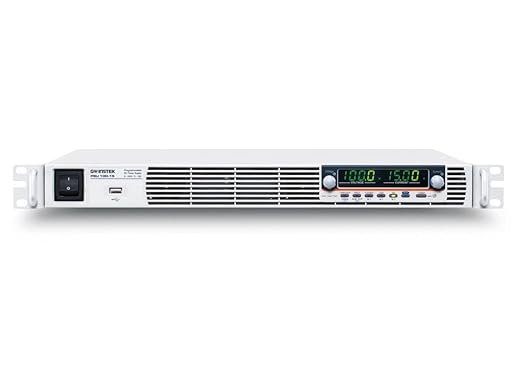

1500W 1U Programmable DC Power Supply

(Click to see larger image and other views)

GW Instek America PSU Series

The PSU-Series offer the latest SIC technology in a 1U programmable DC power supply. Designed for precision and versatility in demanding test and measurement applications. Models rangefrom 6Volts to 600V and from 2.6A to 200A Exceptional efficiency and the lowest ripple and noise in a compact 1U 19" rackmount. Compare to Ametek Sorenson, Lambda-TDK, Magna-Power and

List Price: $2,310.00

Price: $1,969.00

You Save: $341.00 (15%)

Request
A Quote
Most Quotes sent in 3-4 hours

QUESTIONS?
ASK OUR EXPERTS
Contact your local W5 Representative

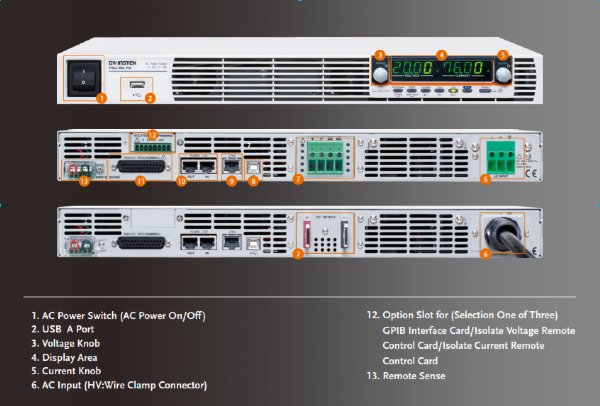

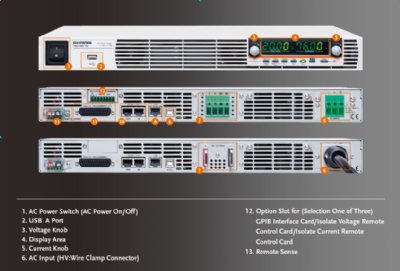

Product Details

PSU-Series

Key Features

Output power range: 1200W to 1560W

Voltage range: 6V to 600V

Current range: 2.6A to 200A

C.V/C.C Priority Mode

Adjustable voltage/current rise and fall time

Series/Parallel connection capability

High efficiency and power density

Remote sensing for improved load regulation

Comprehensive protection features: OVP, OCP, OTP, UVL

Multiple interface options: USB, LAN, RS-232/485, GPIB (optional)

Applications

Automotive electronics testing

Semiconductor device characterization

LED and laser diode testing

Battery simulation and testing

Aerospace and defense systems

DC/DC converter primary input testing

Servomotor manufacturing equipment

Capacitor and diode aging tests

Communications equipment power supply

Electronic components testing

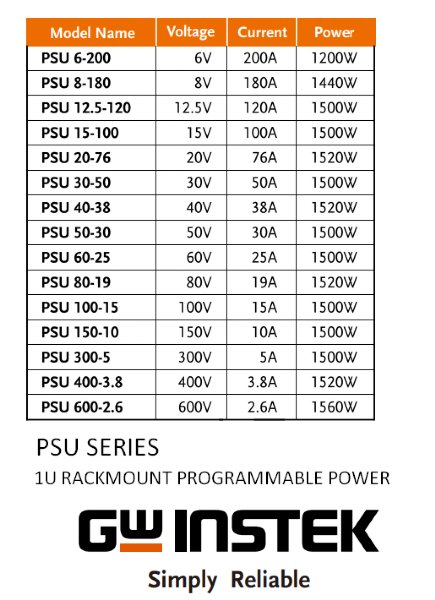

Models and Specifications

Model Name	Voltage	Current	Power	Ripple and Noise (CVp-p)	Ripple and Noise (CVrms)	Ripple and Noise (CCrms)	Load Regulation (Voltage)	Load Regulation (Current)
PSU 6-200	6 V	200 A	1200 W	60 mV	8 mV	400 mA	2.6 mV	45 mA
PSU 8-180	8 V	180 A	1440 W	60 mV	8 mV	360 mA	2.8 mV	41 mA
PSU 12.5-120	12.5 V	120 A	1500 W	60 mV	8 mV	240 mA	3.25 mV	29 mA
PSU 15-100	15 V	100 A	1500 W	60 mV	8 mV	200 mA	3.5 mV	25 mA
PSU 20-76	20 V	76 A	1520 W	60 mV	8 mV	152 mA	4 mV	20.2 mA
PSU 30-50	30 V	50 A	1500 W	60 mV	8 mV	125 mA	5 mV	15 mA
PSU 40-38	40 V	38 A	1520 W	60 mV	8 mV	95 mA	6 mV	12.6 mA
PSU 50-30	50 V	30 A	1500 W	60 mV	8 mV	85 mA	7 mV	11 mA
PSU 60-25	60 V	25 A	1500 W	60 mV	8 mV	75 mA	8 mV	10 mA
PSU 80-19	80 V	19 A	1520 W	80 mV	8 mV	57 mA	10 mV	8.8 mA
PSU 100-15	100 V	15 A	1500 W	80 mV	8 mV	45 mA	12 mV	8 mA
PSU 150-10	150 V	10 A	1500 W	100 mV	10 mV	35 mA	17 mV	7 mA
PSU 300-5	300 V	5 A	1500 W	150 mV	25 mV	25 mA	32 mV	6 mA
PSU 400-3.8	400 V	3.8 A	1520 W	2000 mV	40 mV	17 mA	42 mV	5.76 mA
PSU 600-2.6	600 V	2.6 A	1560 W	300 mV	60 mV	12 mA	62 mV	5.52 mA
