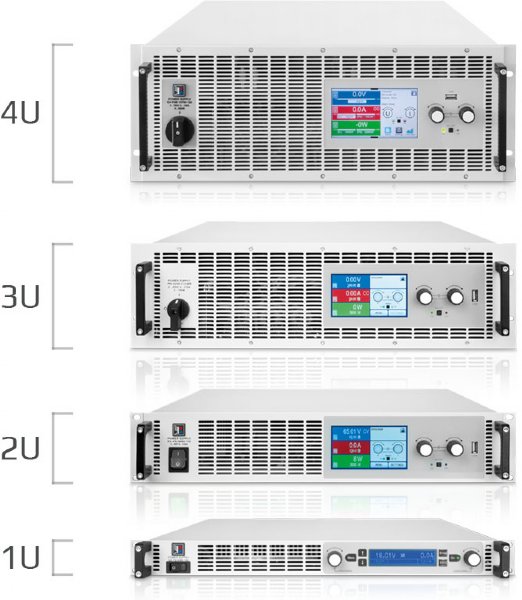

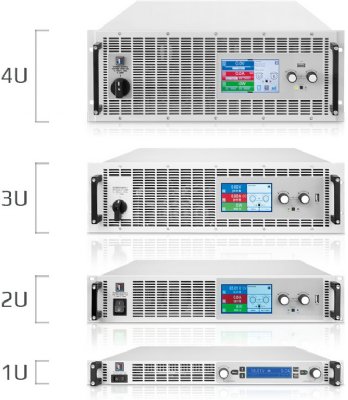

Programmable DC Power Supplies

Elektro-Automatik

EA / Elektro-Automatik now part of Tektronix is North America's fastest growing programmable Power Supplier for R & D and Industrial application. Headquartered in Germany, EA is the world's largest provider of programmable power. We research, develop and manufacture the most advanced, switch-mode power supplies, loads, regenerative/bidirectional DC power supplies and Complete Battery Test Systems. .

Download Literature

Request
A Quote
Most Quotes sent in 3-4 hours

QUESTIONS?
ASK OUR EXPERTS
Contact your local W5 Representative

Product Details

Elektro-Automatic Power Products:

Conventional, Bi-directional and regenerative DC Power Supplies & DC Loads.

There are 207 different models in the TS Series spanning power levels: 5 kW, 10 kW, 15 kW, 20 kW, 25 kW, 30 kW, 40 kW, 50 kW.

To determine the appropriate model:

Select the desired Output Voltage Maximum (Vdc) from the left-most column.
Select the desired Current Maximum (Adc) from the same row that contains your desired Voltage Maximum.
Construct your model number according to the model ordering guide.

	5 kW	10 kW	15 kW	20 kW	25 kW	30 kW	40 kW	50 kW
	3U	3U	3U	4U/6U**	4U/6U**	6U	8U	8U
Voltage Maximum (Vdc)	Current Maximum (Adc)								Ripple (mVrms)	Efficiency
5	900	1800*	2700*	N/A	N/A	N/A	N/A	N/A	50	84%
8	600	N/A	N/A	N/A	N/A	N/A	N/A	N/A	40	85%
10	500	900	N/A	2000	2700*	N/A	4000	N/A	40	87%
16	300	600	900	N/A	N/A	1800	N/A	N/A	35	87%
20	250	500	750	1000	1250	1500	2000	2500	40	88%
25	200	400	600	800	1000	1200	1600	2000	40	89%
32	150	300	450	625	781	900	1250	1562	40	89%
40	125	250	375	500	625	750	1000	1250	40	89%
50	100	200	300	400	500	600	800	1000	50	89%
60	83	166	249	333	416	498	666	832	60	87%
80	62	124	186	250	312.5	372	500	625	60	90%
100	50	100	150	200	250	300	400	500	60	90%
125	40	80	120	160	200	240	320	400	100	90%
160	31	62	93	125	156	186	250	312	120	90%
200	25	50	75	100	125	150	200	250	125	91%
250	20	40	60	80	100	120	160	200	130	91%
300	16	32	48	66.6	83.3	96	133.2	166.6	160	91%
375	13	26	39	53.3	66.6	78	106.6	133.2	170	92%
400	12	24	36	50	62.4	72	100	125	180	92%
500	10	20	30	40	50	60	80	100	220	92%
600	8	16	24	33.3	41.6	48	66.6	83.2	250	92%
800	6	12	18	25	31.2	36	50	62.4	300	92%
1000	5	10	15	20	25	30	40	50	350	92%
1250	4	8	12	16	20	24	32	40	375	92%
1500	3.3	6.6	9.9	13.3	16.6	19.8	26.6	33.2	400	92%
2000	2.5	5	7.5	10	12.5	15	20	25	450	92%
3000	1.6	3.2	4.8	6.6	8.3	9.6	13.2	16.6	500	92%
4000	1.2	2.4	3.6	5	6.2	7.2	10	12.4	550	92%
AC Input Voltage (Vac)	Input Current Per Phase (Aac)
208/240 Vac, 1F	41	N/A	N/A	N/A	N/A	N/A	N/A	N/A
208/240 Vac, 3F	18	36	52	69	85	105	N/A	N/A
380/415 Vac, 3F	10	20	29	38	47	57	76	94
440/480 Vac, 3F	9	17	25	33	40	50	66	82

* Models marked with an asterisk are special low-voltage high-current models that may vary in size and input current from the standard TS Series models within the same power envelope.

** 20/25 kW models with 380/415, 3F input or 440/480 Vac, 3F input come in a 4U chassis. 20/25 kW models with 208/240, 3F input come in a 6U chassis.

Input Specifications

1F AC Input Voltage

1F, 2-wire + ground

Available on 5 kW models only

208 Vac (operating range 187 - 229 Vac)

240 Vac (operating range 216 - 264 Vac)

3F AC Input Voltage

3F, 3-wire + ground

Available on all models

208 Vac (operating range 187 to 229 Vac)

240 Vac (operating range 216 to 264 Vac)

380/400 Vac (operating range 342 to 440 Vac)

415 Vac (operating range 373 to 456 Vac)

440 Vac (operating range 396 to 484 Vac)

480 Vac (operating range 432 to 528 Vac)

Input Frequency

50 to 400 Hz

Power Factor

> 0.92 at maximum power (3F Input)

> 0.70 at maximum power (1F Input)

AC Input Isolation

±2500 Vac, maximum input voltage to ground

Output Specifications

Voltage Ripple

Model specific. Refer to chart of available models.

Line Regulation

Voltage mode: ± 0.004% of full scale

Current mode: ± 0.02% of full scale

Load Regulation

Voltage mode: ± 0.01% of full scale

Current mode: ± 0.04% of full scale

Load Transient Response

2 ms to recover within ±1% of regulated output with a 50% to 100% or 100% to 50% step load change

Stability

± 0.10% for 8 hrs. after 30 min. warm-up

Efficiency

85% to 95%

Model specific. Refer to chart of available models.

Maximum Slew Rate

Standard Models

100 ms for an output voltage change from 0 to 63%

100 ms for an output current change from 0 to 63%

Maximum Slew Rate

Models with High Slew Rate (+HS) Option

4 ms for an output voltage change from 0 to 63%

8 ms for an output current change from 0 to 63%

Bandwidth

Standard Models

3 Hz with remote analog voltage programming

2 Hz with remote analog current programming

Bandwidth

Models with High Slew Rate (+HS) Option

60 Hz with remote analog voltage programming

45 Hz with remote analog current programming

DC Output Isolation

Models Rated =1000 Vdc

±1000 Vdc, maximum output voltage to ground

DC Output Isolation

Models Rated >1000 Vdc or Models with +ISO Option

±(2000 Vdc + Vo/2), maximum output voltage to ground

Control Specifications

Voltage Programming Accuracy

± 0.075% of max rated voltage

Over Voltage Trip Programming Accuracy

± 0.075% of max rated voltage

Current Programming Accuracy

± 0.075% of max rated current

Over Current Trip Programming Accuracy

± 0.075% of max rated current

Voltage Readback Accuracy

± 0.2% of max rated voltage

Current Readback Accuracy

± 0.2% of max rated current

Load Regulation

Voltage mode: ± 0.01% of full scale

Current mode: ± 0.04% of full scale

Computer Command Protocol

Standard Commands for Programmable Instruments (SCPI)

External User I/O Port

Analog and Digital Programming

37-pin D-sub DB-37, female

Referenced to Earth ground; isolated from power supply output

See User Manual for pin layout

Analog Programming and Monitoring Levels

0-10 Vdc

Analog Output Impedances

Voltage output monitoring: 100 O

Current output monitoring: 100 O

+10V reference: 1 O

Digital Programming and Monitoring Limits

Input: 0 to 5 Vdc, 10 kO input impedance

Output: 0 to 5 Vdc, 5 mA drive capacity

Remote Sense Limits (Wired)

3% maximum voltage drop from output to load

Physical Specifications

Size and Weight

5 kW Models

5.25" H x 19" W x 24" D (13.34 x 48.26 x 60.96 cm)

74 lbs (34.57 kg)

Size and Weight

10 kW Models

5.25" H x 19" W x 24" D (13.34 x 48.26 x 60.96 cm)

94 lbs (42.64 kg)

Size and Weight

15 kW Models

5.25" H x 19" W x 24" D (13.34 x 48.26 x 60.96 cm)

125 lbs (56.70 kg)

Size and Weight

20 kW Models

380/415 Vac and 440/480 Vac, 3F input

7” H x 19” W x 24” D (17.8 x 48.2 x 60.9 cm)

160 lbs (72.6 kg)

Size and Weight

20 kW Models

208/240 Vac, 3F input

10.5" H x 19" W x 24" D (26.67 x 48.26 x 60.96 cm)

185 lbs (83.9 kg)

Size and Weight

25 kW Models

380/415 Vac and 440/480 Vac, 3F input

7” H x 19” W x 24” D (17.8 x 60.9 x 48.2 cm)

180 lbs (81.7 kg)

Size and Weight

25 kW Models

208/240 Vac, 3F input

10.5" H x 19" W x 24" D (26.67 x 48.26 x 60.96 cm)

220 lbs (99.79 kg)

Size and Weight

30 kW Models

10.5" H x 19" W x 24" D (26.67 x 48.26 x 60.96 cm)

245 lbs (111.13 kg)

Size and Weight

40 kW Models

14” H x 19” W x 24” D (35.6 x 48.2 x 60.9 cm)

315 lbs (142.9 kg)

Size and Weight

50 kW Models

14” H x 19” W x 24” D (35.6 x 48.2 x 60.9 cm)

355 lbs (161.0 kg)

Environmental Specifications

Ambient Operating Temperature

0°C to 50°C

Storage Temperature

-25°C to +85°C

Humidity

Relative humidity up to 95% non-condensing

Temperature Coefficient

0.04%/°C of maximum output voltage

0.06%/°C of maximum output current

Air Cooling

3U and 6U Models

Side air inlet, rear exhaust

Air Cooling

4U and 8U Models

Front and side air inlet, rear exhaust

Water Cooling

With +WC Option

25°C maximum inlet temperature

1.5 GPM minimum flow rate for 5-15 kW units

3.0 GPM minimum flow rate for 20-30 kW units

4.5 GPM minimum flow rate for 40-50 kW units

80 PSI maximum pressure

1/4” NPT female pipe size

Regulatory Compliance

EMC

Complies with European EMC Directive for test and measurement products

Safety

Complies with EN61010-1

CE Mark

Yes

RoHS Compliant

Yes

Front Panel

3U Models

Rear Panel

3U Models

Side Panel

3U Models

Front Panel

4U Models

Rear Panel

4U Models

Rear Panel

4U Models, With Water Cooling Option (+WC)

Side Panel

4U Models

Side Panel

4U Models, With Water Cooling Option (+WC)

DC Output Bus

4U Models, Rated Below 125 Vdc

DC Output Bus

4U Models, Rated 125 Vdc to 1000 Vdc

DC Output Bus

4U Models, Rated Above 1000 Vdc or with High Isolation Option (+ISO)

Front Panel

6U Models

Rear Panel (6U)

Legacy 20 kW, 25 kW and 30 kW Models

Rear Panel

6U Models, With Water Cooled (+WC) Option

Side Panel

6U Models

Front Panel

8U Models

Rear Panel

8U Models

Side Panel

8U Models

DC Output Bus

8U Models, Rated Below 125 Vdc

DC Output Bus

8U Models, Rated 125 Vdc to 1000 Vdc

DC Output Bus

8U Models, Rated Above 1000 Vdc or with High Isolation Output (+ISO)

High Isolation Output

+ISO

Available for models rated for 250 Vdc to 1000 Vdc, the +ISO option greatly increases the output isolation, used when the application demands floating or tying units in series beyond the standard ±1000 Vdc output isolation rating.

LEARN MORE

High Slew Rate Output

+HS

The high slew rate output option is a hardware and control modification that replaces the standard output stage with one of low capacitance film and/or high RMS current rated aluminum electrolytic capacitors. This options provides higher bandwidth with faster output rise and fall times.

LEARN MORE

IEEE-488 GPIB

+GPIB

This option provides an integrated IEEE-488 GPIB communications port, allowing the product to be fully controlled and monitored using supported commands, as well as adding some additional interface specific commands.

LEARN MORE

Integrated Blocking Diode

+BD

The Integrated Blocking Diode Option provides an internally heatsinked protection diode on the positive output terminal of a MagnaDC programmable DC power supply to protect the product's output from reverse voltage up to 1200 Vdc.

LEARN MORE

LXI TCP/IP Ethernet

+LXI

This option provides an integrated TCP/IP Ethernet communications port, allowing the product to be fully controlled and monitored using supported commands, as well as adding some additional interface specific commands.

LEARN MORE

Photovoltaic Power Profile Emulation

+PPPE

This software interface for Magna-Power programmable DC power supplies utilizes EN50530 modeling to generate and transfer non-linear solar array profiles as a function of temperature and sunlight for the power supply to emulate.

LEARN MORE

Water Cooling

+WC

Water cooling is available instead of the standard air cooling. Water cooled units are fully enclosed and to not take in any external air, making them ideal for corrosive environments, densely packed cabinets or setups where water is readily available.

LEARN MORE

Accessories Available

Name	Item	Description	Docs
USB Edgeport Converter	25302	Industrial Plug and Play USB to RS232 Converter	N/A
RS485 Converter	24716	Industrial RS232 to Addressable RS485 Converter	N/A
UID47: Universal Interface Device	22026	Master-slave interface device for load sharing. Includes interface device and (2) D-Sub 37 cables.	PDF
CAB1: Cabinet and Integration 1	17883	12U Cabinet (32” H x 24” W x 31.5” D) with casters, fans, and product integration	N/A
CAB2: Cabinet and Integration 2	17883	24U Cabinet (51.5” H x 24” W x 31.5” D) with casters, fans, and product integration	N/A
CAB3: Cabinet and Integration 3	17883	30U Cabinet (67” H x 24” W x 31.5” D) with casters, fans, and product integration	N/A
CAB4: Cabinet and Integration 4	17883	36U Cabinet (75” H x 24” W x 31.5” D) with casters, fans, and product integration	N/A
CAB3x2: Cabinet and Integration 3x2	17883	60U Double Cabinet (67” H x 48” W x 31.5” D) with casters, fans, and product integration	N/A
CAB4x2: Cabinet and Integration 4x2	17883	72U Double Cabinet (75” H x 48” W x 31.5” D) with casters, fans, and product integration	N/A

White Papers

An Overview of Current-Fed Power Processing

A technical paper on Magna-Power Electronics signature current-fed power processing topology with a comparison to alternative approaches to high-power switch-mode power supply design.

Control Loop Modulation Applied to Programmable DC Power Supplies

Modulation allows a set point adjustment of voltage or current by another input. Modulation signals can be derived from an external device, such as a thermistor, or from sampling output current or voltage.

Getting the Best Performance from AC to DC Power Supplies in Abusive Environments

Five frequently seen power supply integration problems that may affect the product's lifespan and measures for correcting them, including: power supply grounding, line voltage, switching remote sense leads, over current trip fault, and operating environment.

Peak-to-Peak Output Voltage Measurements of Switching Power Supplies

The peak-to-peak output voltage measurement requires a setup that is difficult for customers to replicate. This article explores the methods and physical apparatuses used by Magna-Power to measure peak-to-peak output voltage ripple.

Current-Fed Power Processing—Ride Through Robustness

Magna-Power’s design philosophy focuses on developing power circuits capable of riding through potentially damaging conditions. This article explores this design philosophy in more detail, along with the company's MagnaDC power supply's signature current-fed power processing.

Article Title	Category
Product shipping weights and dimensions	Logistics
Amount of capacitance on the power supply's output	Specifications
Configuring the power supply for computer control	Programming
Export classification code and harmonized tariff code	Logistics
RS232 interface configuration settings	Programming
MPE IVI driver installation and configuration	Programming
Slew rate and the available configurations	Specifications
Calculating the regulated output impedance	Specifications
Output bleed resistance	Specifications
Interfacing with MATLAB through RS232	Programming
Instrumentation Programming with Python	Programming
