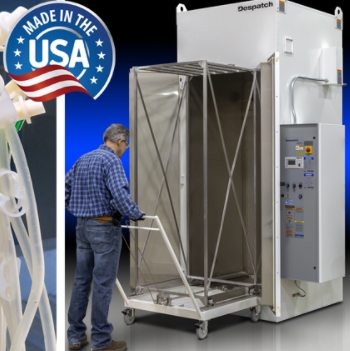

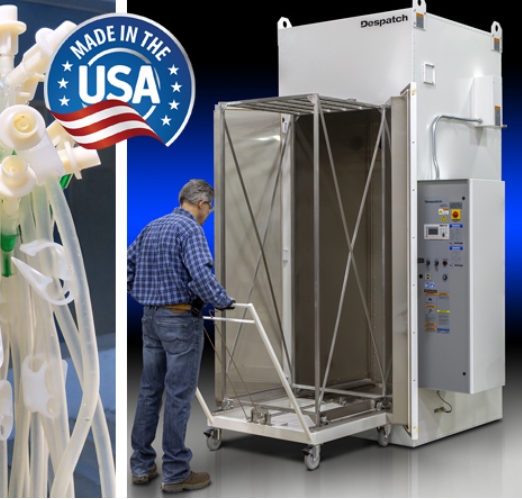

Despatch PRC2-63 Industrial Oven for Medical Catheters

Despatch PRC2-63 Industrial Oven for Medical Catheters

Despatch Tall Medical Catheter Oven

PRC2-63 Catheter Curing Oven

  • Max temp: 500°F (260°C)
  • Vertical Up Airflow
  • 84 Inches Tall for Large Catheters
  • Truck and Dolly + Rack Options
  • Made in the USA

~ View  PRC2-63 Catheter Oven;PDF Datasheet
~ Go to Despatch's website:

Request Quote Request
A Quote

Most Quotes sent in 3-4 hours
Contact Representative QUESTIONS?

Contact your local W5 Representative
Product Details

The TAD/TFD Series is available in two sizes 48 (476 cubic feet) and (952 cubic feet). TFD Models are NFPA 88 Class A Ovens.

Standard Features:
  • Maximum temperature of 260? (500?)
  • Vertical up airflow)
  • Compact footprint
  • 84-inch-tall chamber to hang catheters
  • 304 stainless steel interior
  • 5-year heater warranty
  • PC interface for remote input, monitoring and recording (RS485 connection)
  • Protocol 3™ control, large LCD display, integrated data logging and USB port for simple oven set-up and data export
  • UL and C-UL listed open industrial control pane
  • Truck and dolly with rack for hanging catheters
  • End of cycle and high-limit indicators
  • Door interlock switch turns off heater
    and fan when door is opened
  • Audible and visual high-limit alarm
  • Access port for test wires
  • Chart recorders
  • CE compliance

PRC2-63 Catheter Curing Ovens are Designed specifically for Medical catheter manufacturers

The Despatch PRC2-63 is designed to address the unique requirements of catheter manufacturers. It’s a one-size-fits-all solution that features vertical airflow to keep cross wind from blowing tubes around, a tall configuration with a small footprint to save floor space while allowing room to hang catheters up to 80 inches long inside the chamber, and a stainless steel interior for easy cleaning.

An optional truck and dolly system with a rack for hanging catheters is available. Purchasing two trucks allows for preloading one truck while the other is in the oven to improve productivity.

This oven is equipped with the Protocol 3™ microprocessor-based temperature and hi-limit controller with large LCD display and real time clock for auto start capability. The LCD display shows temperature readings along with clear, detailed information on oven status. The data-logging functionality enables reporting and analyzing and data files can be exported via the controller’s USB port. Modbus RS485 communications are included for easy data access.
