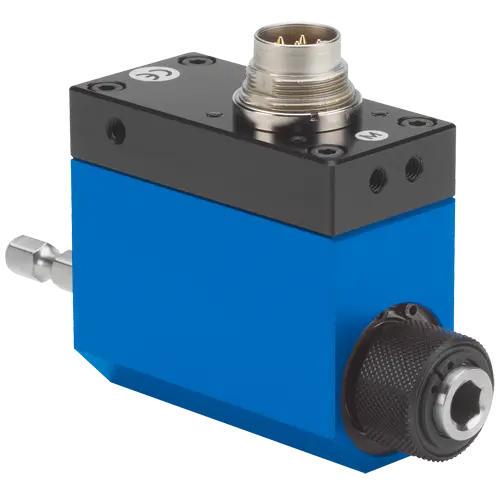

4502A General-Purpose Torque Sensor – Cost-effective precision for everyday testing.
Kistler Aero/Defense (T&M)
description :
Shaft torque sensor Mini-Smart, torque transducer (measuring ranges from 0.5 Nm to 1 kNm)
Choose Quantity:
1
The W5 Engineering Advantage
20+ Years in Testing
All Across North America
Trusted by Industry Leaders
24-Hour Engineering Replies
Secure Order Processing
ISO-Level Quality Assurance
Torque sensors Type 4502A are strain gauge based non-contact shaft torque transducers. They are optionally available with an integrated encoder.
The Mini-Smart torque sensor uses strain gage technology. The torque signal is transmitted from the rotating shaft via frequency modulation and is processed as an analog signal. The rotational angle signal with two tracks of each 360 pulses per revolution and track is available as TTL signal. An external electrical control input is standard.
Main features / advantages
Strain gauge torque transducers
Analog output signal of 0 to 5 VDC, transferred without contact
Integrated speed and angle measurement
Connections: 1/4" hex socket (DIN3126), square socket or cylindrical shaft ends
Operational up to 12000 1/min
