The torque flange sensors of type 4550A come with integrated speed measurement and high resolution angle of the rotation measuring system. The analog and digital interfaces provide maximum flexibility and easy integration into various test bench environments.

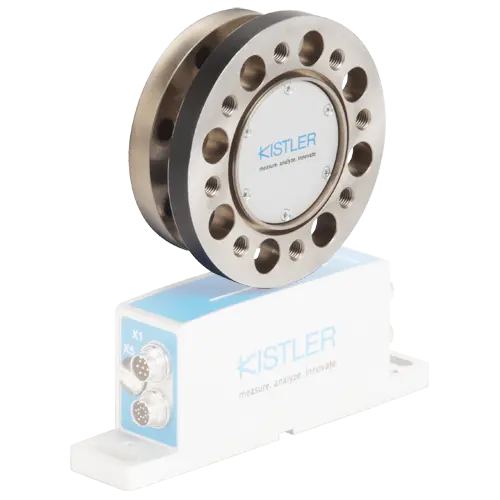

The KiTorq system is a torque measuring flange system, consisting of the Type 4550A KiTorq Rotor torque measuring unit and the Type 454xA KiTorq Stator torque evaluation unit. The rotors and stators of the KiTorq system which have the same speed option can be used in any combination with each other. Using the ordering key, the Type 4550A rotor can be purchased individually or as a calibrated torque measurement chain together with a KiTorq Stator. The stator automatically detects a change in the rotor and automatically sets the required parameters. The torque evaluation unit supplies power to the KiTorq Rotor and receives measurement values from it. The evaluation unit has an integrated speed measuring unit and provides various signal outputs, depending on type.

Main features / advantages
