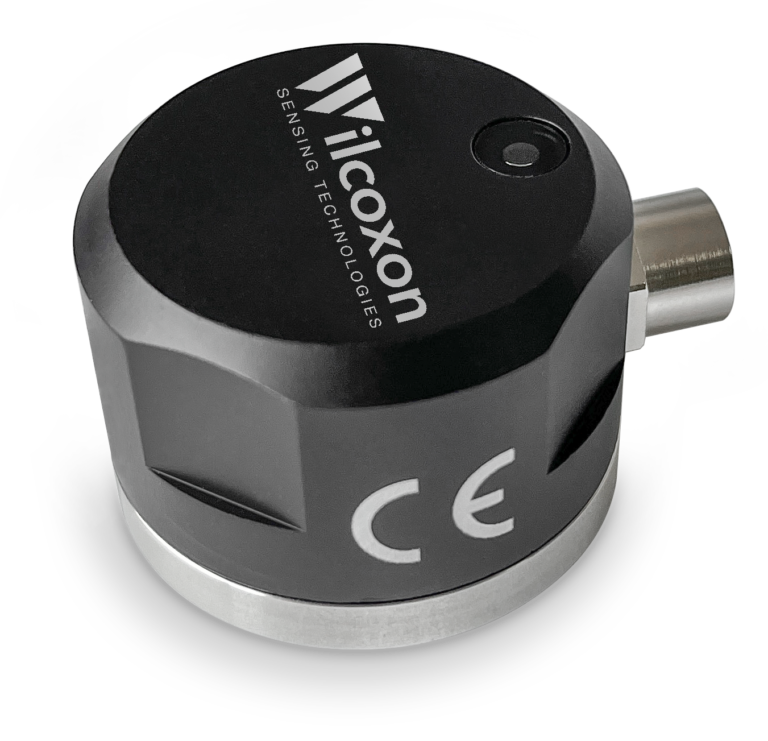

883M Amphenol Wilcoxon Sensing Technologies

Wilcoxon

Digital triaxial MEMS accelerometer and temperature sensor
Acceleration range ±16 g, peak
Frequency response, ± 3 dB 2 Hz - 5 kHz
Temperature measurement range  –20° to +70° C
Digital output only; communication Interface RS485 | Modbus RTU Protocol.
Excitation (Power)  6 - 24 VDC
Dimensions 35mm dia. x 26 mm h | Weight 75 grams | IP67 | Case material: (upper A6061 aluminum) / (lower: 303 stainless steel).
Connector 4-socket M8 (Mating connector: 4-pin M8)
Mounting adhesive mount via sensor flat base | screw mount adapter (optional) | magnet mount adapter (optional)
Operating temperature –20° to +70° C
Storage temperature –20° to +80° C
Operating humidity 5 - 95% RH
See all documents

$650.00 USD

Choose Quantity:

1

The W5 Engineering Advantage

Icon for award

20+ Years in Testing

Icon for users

All Across North America

Icon for trust

Trusted by Industry Leaders

Icon for clock

24-Hour Engineering Replies

Icon for users

Secure Order Processing

Icon for Award

ISO-Level Quality Assurance

Digital triaxial accelerometer and temperature sensor

Triaxial accelerometer and temperature sensor; acceleration range ±16 g, peak; Modbus digital output of vibration spectrum, time waveforms, 15 calculated vibration metrics, and temperature; side-exit 4-socket M8 connector; adhesive mounting standard, optional screw or magnet mounting

Features

  • Synchronous measurement of machine vibrations in three axes and temperature
  • Detection of overall of vibration acceleration, velocity, and displacement
  • Digitally outputs vibration spectrum, time waveforms, and 15 calculated vibration metrics for each axis
  • Up to 5kHz high-frequency response
  • Modbus RTU communication protocol ensures stable data transmission
  • IP67 design for durable and reliable operation in harsh environments up to +70°C
  • Outputs align with ISO 10816-3 and ISO 20816-3 guidelines for evaluating mechanical vibrations

Optional accessories

  • Screw mount adapter
  • Magnet mount adapter

Applications

  • Rotating machinery: motors, fans, blowers, pumps, compressors
  • Transmission systems: gearboxes, couplings, bearings
  • Manufacturing equipment: CNC machines, conveyor belts
  • HVAC systems: compressors, cooling towers, cranes, lifting equipment, road rollers

Specifications

Resolution 0.488 mg
Acceleration range ±16 g, peak
Frequency response, ±3dB 2 Hz - 5,000 Hz
Mounting Adhesive, screw, or magnet
Connector style 4-socket M8 connector
Connector orientation Side exit
Resonance frequency 6.9 kHz
Temperature range –20°C to +70°C
Weight 75 grams
Hazardous area approvals N/A
