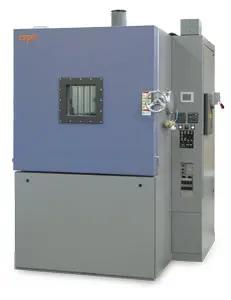

Altitude Chambers

Espec North America

Select a Model:

Interior Dimensions (W x D x H) :

24" x 24" x 24"

Interior Volume :

8 cu. ft.

Temperature Range :

-65 to 150°C

Humidity Control :

Yes

Change Rate (heat/cool) :

up to 5°C/min.

Notes :

Altitude range: Site to 100,000 feet, (humidity while altitude is off)

Choose Quantity:

1

The W5 Engineering Advantage

Icon for award

20+ Years in Testing

Icon for users

All Across North America

Icon for trust

Trusted by Industry Leaders

Icon for clock

24-Hour Engineering Replies

Icon for users

Secure Order Processing

Icon for Award

ISO-Level Quality Assurance

ESPEC can provide custom-built chambers for simultaneous testing of temperature and low-pressure altitude conditions. Two common applications are:

  • Testing of avionics or other aerospace equipment to simulate actual conditions it might experience.
  • Simulation of high-altitude conditions like might be found in mountainous regions.

Applicable test methods (depending on chamber system specified)

  • Mil-Std 202G (conditions 105C, A/B/C/F)
  • Mil-Std 810G (condition 500.5)
  • IEC 60068-2-39
  • IEC 60068-2-40
  • RTCA/DO-160F
  • JIS W 0812

NOTE: Altitude chambers are custom systems, and differing requirements may significantly change the cost and utility requirements. Please let ESPEC know as much detail as possible about your anticipated testing specification/method, and we can provide you with a tailored system for your requirements.

Features for Altitude Chambers
  • Temperature range from -65 to 150°C
  • Altitude range from ground to 100,000 feet
  • Optional humidity control when altitude system is off
  • Chamber interior size specified by customer

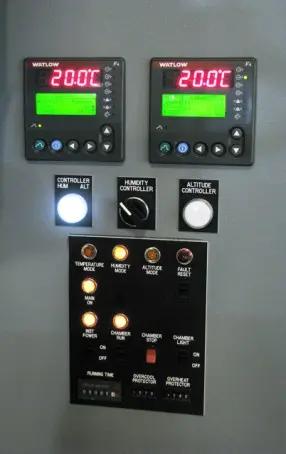

  • Automatic altitude control, integrated with temperature controller
  • Vacuum pump sized for climb/dive rate required by your application

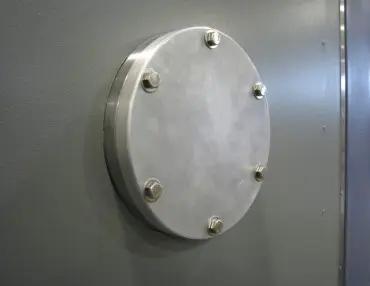

  • Viewing window and cable ports available
