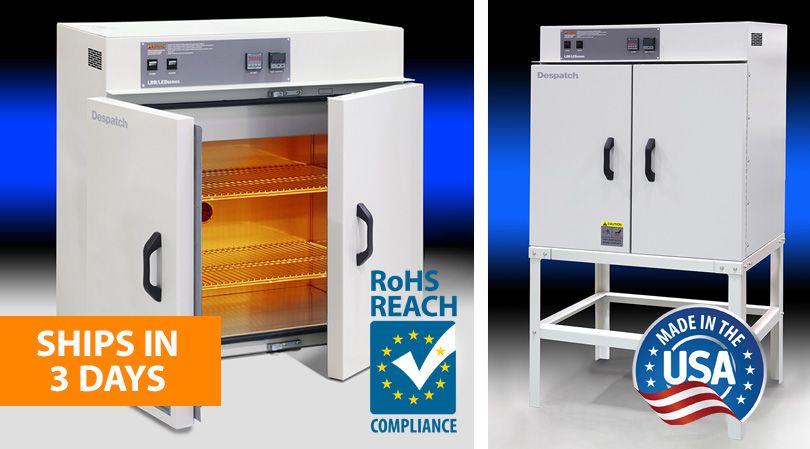

LBB FORCED CONVECTION BENCHTOP OVEN

The Despatch LBB Forced convection benchtop oven features a combination of horizontal and vertical airflow that offers excellent temperature uniformity at a moderate price. It is recommended for a variety of laboratory and production applications including drying, curing, annealing and materials testing.

Fast Heat-Up Rates | Powerful open coil heating elements and a forward curved fan deliver faster heat-up rates and short processing times.

Precise Digital Controls | Digital controls regulate temperatures within tight tolerances. A 3/4 inch (1.9cm) LED panel displays temperatures in large, bright, easy-to-read numbers. Temperatures can be reported in either Fahrenheit or Celsius.

Reliable, Trouble-Free Performance | The LBB is designed and manufactured to provide years of dependable service. The fan and heater are top-mounted to prevent damage from spills.

When spills do occur, the corrosion-resistant stainless steel interior and nickel plated shelves clean up easily. The motor is permanently lubricated and virtually maintenance free. And Despatch warrants the heater performance for a full five years - the best warranty in the industry.

Every LBB benchtop oven is UL and C-UL listed, and receives a thorough performance test before shipping.

Forced Convection for Excellent Temperature Uniformity | A top-mounted fan draws air through the heater coils and propels it back to the chamber through plenums in the side walls, resulting in consistent, uniform temperatures.

Sturdy Shelves | Standard shelves handle up to 50 lbs.; reinforced shelves handle up to 200 lbs. All shelves are nickel plated for maximum durability and easy clean up. Built-in shelf supports make it easy to change shelf locations.

Fast Delivery | Standard models ship in two to three days.

Easy to Clean and Service | Cleaning is easy due to the scratch-resistant, baked enamel exterior, stainless steel interior, and smooth door surface. Servicing is easy due to convenient top access to the heater and fan. .

Superior Quality | The Despatch LAC features a sturdy, welded, double-wall construction, three inches (7.6cm) of glass fiber insulation, and heavy-duty gaskets. Each oven receives a thorough quality and performance test before it is shipped. Heating elements carry a five-year warranty. All models are UL/C-UL listed.

LFC Class A model (see separate spc sheet) | The LFC Class A bench-top oven is specially designed to meet NFPA 86 requirements for applications that include flammable solvents or large amounts of moisture removal. ­This model includes a pressure relief panel, purge timer and exhaust fan.

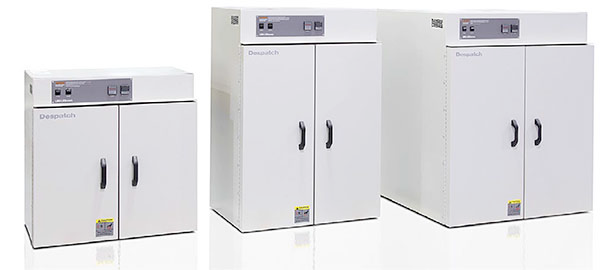

The LBB model is available in five sizes from the small benchtop LBB1-23 (2.3 cubic feet) to the largest cabinet sized LBB2-27 (27.7 cubic feet).

Options

• Extra shelves
• Protocol 3™ programmable control with large LCD display, integrated data logging capabilities and USB port for simple oven set-up and data export
• 2-inch access port
• Oven stand
• Door with window and interior light
• Process timer with audible and visual alarm
• End-of-cycle and high limit indicators
• CE Conformance

The LBB2-27 is available with pass-through doors to allow seamless integration into a work cell and provide continuous product flow through the process.

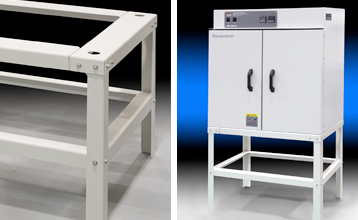

Oven stands are available for all LBB models. LBB1-69 shown with optional stand.
