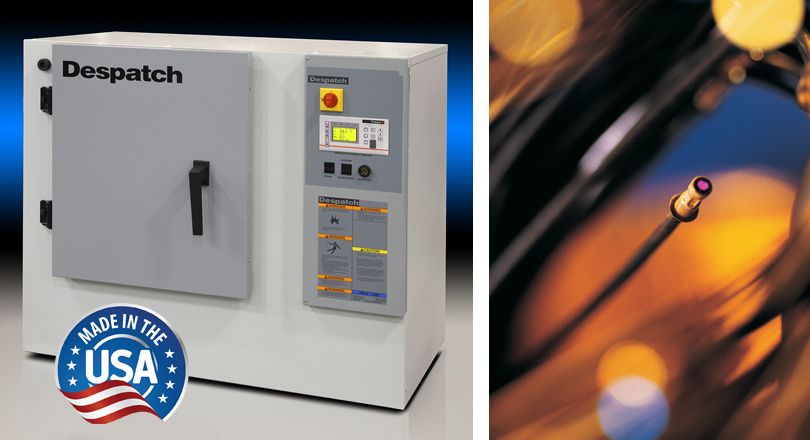

QMAX BENCHTOP TEST OVEN
Meets your testing requirements
The Qmax High Performance Benchtop oven is specifically designed to meet the frequent air changes and tight temperature uniformity required of the ASTM 5423 Type I & Type II oven specification. A high-volume fan circulates air through perforated, stainless steel walls to create a constant horizontal airflow across all sections of the oven. The result is highly uniform airflow to easily meet ASTM 5423 Type I and II specification while tested according to ASTM 5374.
The Qmax oven exceeds the ASTM 5423 Type II performance requirement with a temperature variation of less than 6°C at 300°C while maintaining 100-200 air changes per hour. In addition, the brass bar thermal lag time showed superior oven temperature recovery. These ovens can be used for applications such as thermal evaluation of electrical insulating materials, testing, aging, curing, drying, sterilizing and other thermal applications where tight temperature uniformity is required.
Oven control | Standard digital controls regulate temperatures within tight tolerances and provide high limit protection. For more advanced control choose the optional Protocol 3™ microprocessor-based temperature and hi-limit controller with large LCD display and real time clock for auto start capability. Data-logging functionality enables reporting and analyzing and data files can be exported via the controller’s USB port. Modbus RS485 communications are included for easy data access.
Remote operation, programming and data logging | The Despatch Protocol Manager network utility software enables the operation of up to 32 Protocol 3 and/or Protocol Plus controllers from a single, remote PC using RS485 communication.
Options:
- Protocol 3™ control with large LCD display, integrated data logging capabilities and USB port for simple oven set-up and data export.
- PC interface for remote input, monitoring and recording (RS485/422/232)
- Extra shelves
- Door interlock switch turns off heater when door is opened
- Hi-limit over-temperature audible and visual alarm
- Chart recorder
- CE compliant
- Stacking hardware
- Oven stand
Features
Temperatures up to 343°C (650°F)
Meets ASTM 5423 Type I and II specification while tested according to ASTM 5374
Tight temperature uniformity even with increased air changes
Horizontal airflow for uniform thermal performance
Protocol 3TM control with large LCD display, integrated data logging capabilities and USB port for simple oven set-up and data export
Removable rear-wall for fixturing
Digital control with 3/4” (1.9cm) LED display
High limit over-temperature protection
Multiple temperature operations are controlled by up to eight programs, with eight ramp and soak segments in each program
304 Stainless steel interior
Sliding shelf design for easy load and unload
Access port in rear of oven for test connections
5-year heater warrant
End of cycle and high-limit indicators
UL and C-UL listed open industrial control pane
