RAF/RFF HIGH-PERFORMANCE BATCH FURNACES

Despatch RAF furnaces feature horizontal recirculating air.flow to ensure exceptional temperature uniformity of ±5.6℃ at 538℉. .These high performance furnaces deliver temperatures up to 538℃ (1000℉) and are great for such processes as annealing, aging, stress relieving and other process critical applications.

The RAF is available in cabinet and benchtop models. The cabinet furnace is suited for volume production while the benchtop model, with its small footprint, is ideal for high temperature process development in a laboratory

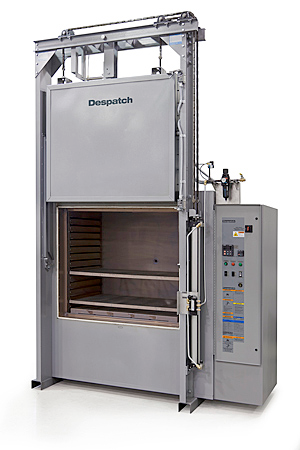

RFF2-35 with optional pneumatic lift door.

Despatch RFF Class A furnaces are specifically designed to meet NFPA 86 requirements for applications that include flammable solvents This Class A furnace is complete with a pressure relief panel, purge timer, and exhaust fan.

These oven are equipped with the Protocol 3™ microprocessor-based temperature and hi-limit controller with large LCD display and real time clock for auto start capability. The LCD display shows temperature readings along with clear, detailed information on oven status. The data-logging functionality enables reporting and analyzing and data . les can be exported via the controller’s USB port. Modbus RS485 communications are included for easy data access.

Despatch Industries is the world's premier supplier for clean process, low oxygen, fast cycle curing of adhesives and polymers used in high-volume semiconductor packaging and assembly.

Options:

• Despatch unique adjustable louvers
• Pnuematic lift door
• Chart recorder
• Access ports for test wires
• CE compliant

Features
