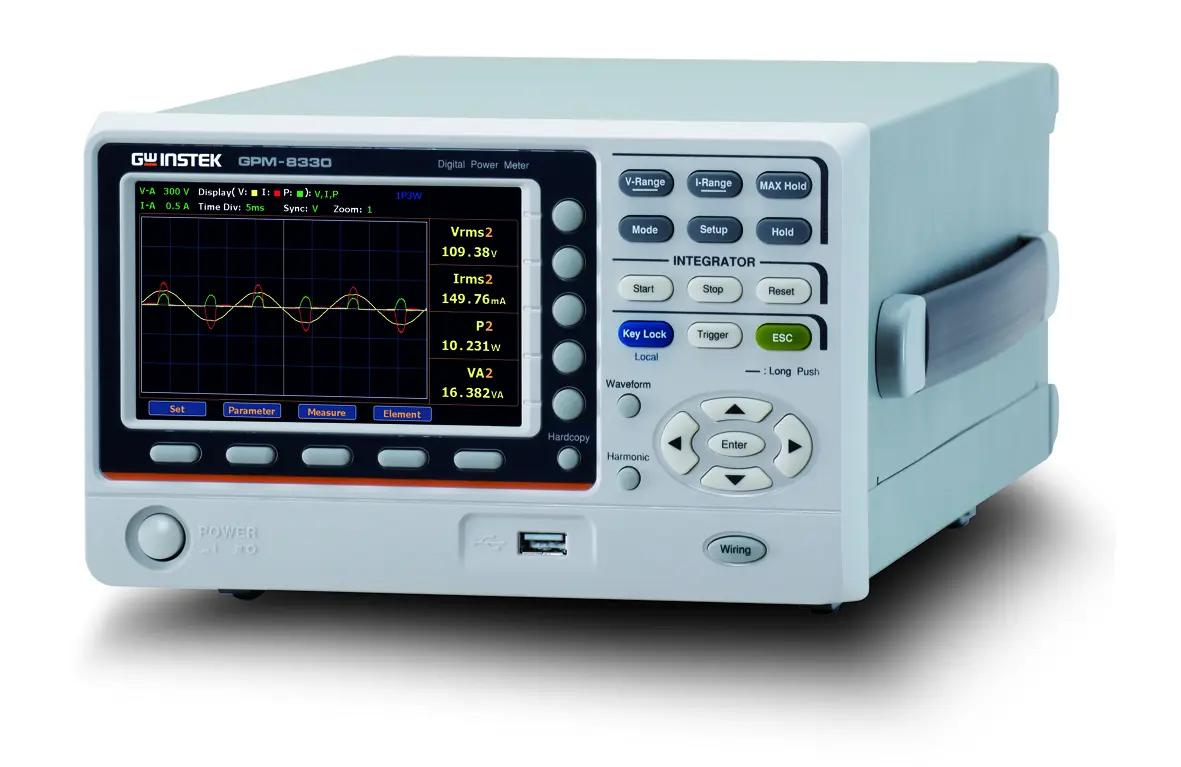

GPM-8320/8330 also feature waveform display capabilities (voltage/current/power), the integration measurement function, harmonics measurement and analysis of multiple orders (50/60Hz measurement complies with IEC61000-4-7 requirements), external sensor input terminals, and a variety of communications interfaces. These features help users achieve clear, convenient, and accurate power measurements, making them the most fully-featured and cost-effective power meters in the same category.

GPM-8320/8330 provide multiple input voltage configuration wiring modes (1P3W/3P3W/3P4W/3V3A). Users can choose the wiring mode according to their specific requirements to measure parameters for specific wiring methods, and even calculate efficiency. In addition, for a rated input voltage of 1000V and an input current of 20A, they support a minimum current range of 0.5A (resolution of 0.1mA), power measurement resolution of 0.1mW, crest factor of 3 (for half range, the CF can reach up to 6 or 6A), and voltage/current/power measurement accuracy of ±0.1% reading ±0.05% range. Users can select different measurement modes (AC+DC/ AC/ DC/ V-MEAN) to provide up to 25 related parameters for power measurement.

These parameters include voltage (Vrms/ Vac/ Vdc/ Vmn/ V+pk / V-pk), current (Irms/ Iac/ Idc/ I+pk/ I-pk), frequency (VHz/ IHz), power (P/ P+pk/ P-pk), crest factor (CFV/ CFI), apparent power (VA), reactive power (VAR), power factor (PF), phase angle (DEG), total harmonic distortion (THDV/ THDI), maximum current ratio (MCR), and MATH calculation function. Therefore, they provide the best range and accuracy support for measuring the power consumption of electrical and electronic products.

Standard Accessories

• Safety Instruction Sheet x 1, Power cord x 1
• Test lead GTL-209 x 2, Test lead GTL-212A x 2 ~ GPM-8320
• Test lead GTL-209 x 3, Test lead GTL-212A x 3 ~ GPM-8330
• DA12 cable GTL-214 (available for GPM-8320/8330 with GPM-DA12 only)

Ordering information

• GPM-8320 Digital Power Meter (RS-232C / USB device & host / LAN)
• GPM-8320 with GPM-DA12 Digital Power Meter (RS-232C / USB device & host / LAN and GPIB+DA12 opt.)
• GPM-8330 Digital Power Meter (RS-232C / USB device & host / LAN)
• GPM-8330 with GPM-DA12 Digital Power Meter (RS-232C / USB device & host / LAN and GPIB+DA12 opt.)
