Designed for testing compressive strength of packaging and creep performance of shipping containers, pallets and unit loads, according with the ASTM and ISTA international standards.

Loads are exposed to different compressive forces, both vertical and lateral, during handling, automated warehouse storage and transport.

The Compression Tester is a test equipment specifically designed to evaluate the resistance of packaged materials and products to compression forces. It provides the necessary information for packaging characterization and design to face with these hazards.

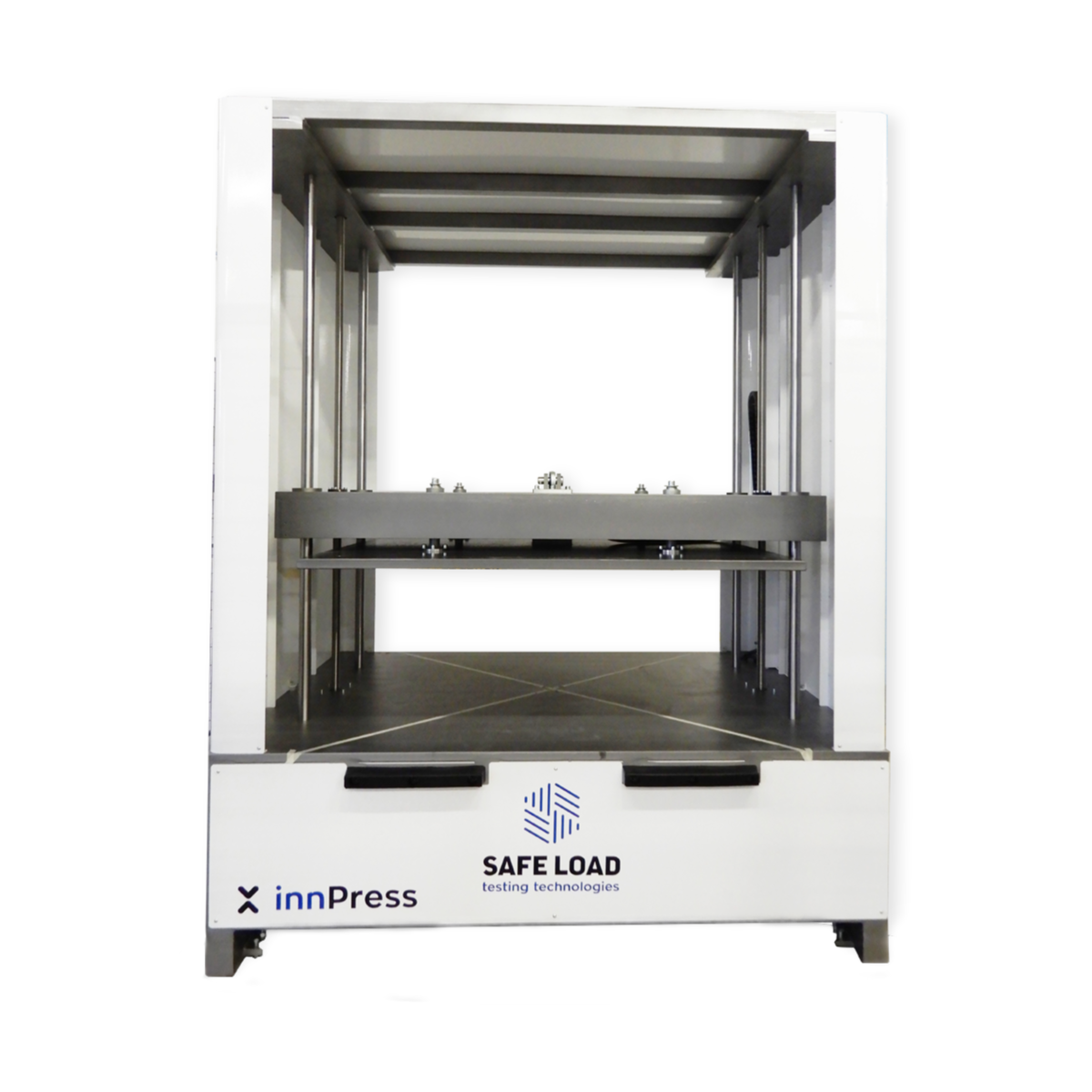

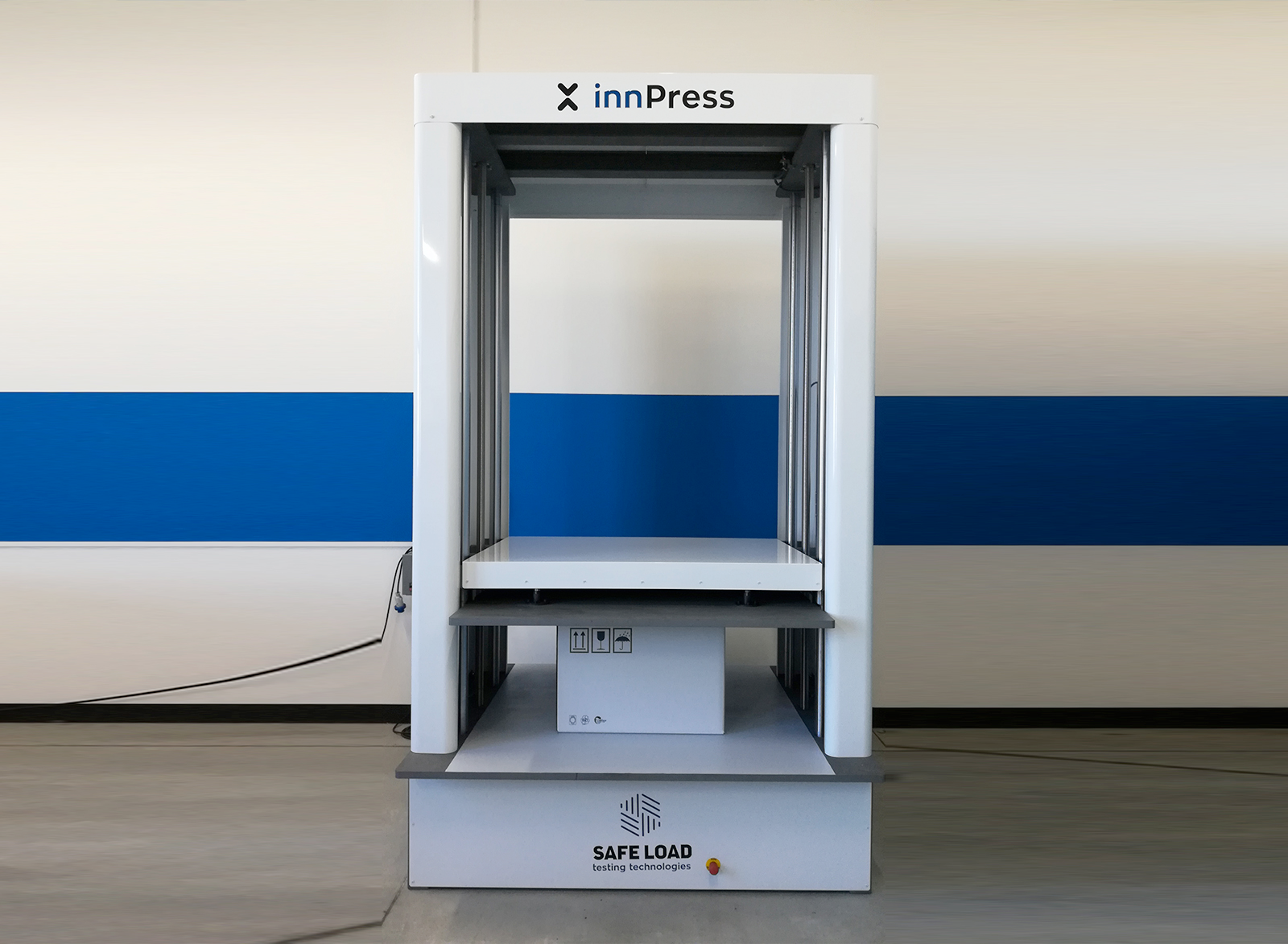

Safe Load Testing Technologies has developed the innPress family, consisting of several models of compression machines to carry out compression tests, as well as creep tests, of shipping containers, pallets and load units.

Why to choose our Compression Tester?

The Compression Tester allows you to carry out your own tests as well as to comply with the international standards of ASTM, ISTA, MIL and ISO, such as ISO 8611, since it can include the necessary accessories to carry out this test.

To carry out the tests, the sample is placed on the base of the Compression Tester and the compression plate is moved until it contacts the sample, applying the compression forces indicated by the technician. Meanwhile, the machine measures the displacement of the pressure plate by means of a linear encoder with micrometer precision and the force with a load cell.

Safe Load TT equipment is characterized by including intuitive controls that, through a touch screen, allow easy testing and control of all variables. It also includes different preset testing modes:

• Constant rate.
• Apply and hold.
• Apply and release.

Technical specifications

• Electric machine controlled by a state-of-the-art, high-precision electric servomotor, which allows the machine to be maneuvered in a more efficient and cleaner way.
• Transmission is carried out by means of spindles to reduce noise and increase precision.
• Heavy-strength compression plates
• Compression force measurement by high precision load cells.
• Maximum compression forces up to 200 kN
• Stroke up to 2400 mm
• Testing table in different sizes
• Variable compression speed: 5-200 mm/min
• Load accuracy <0.5%
• Position accuracy: <0.1 mm
• Testing data on-site
• Intuitive controller
• Automatic report generator

Optionals

Optional

• Can be installed inside climatic chamber (under request)
• Fixed or floating platen
• Accessories for ISO 8611

Introducing a Powerful and Versatile Electric Machine for Precise Compression Testing with Adjustable Stroke, On-Site Data Collection, and Automatic Report Generation
