The DR4 is capable of quickly and accurately characterizing a vibration, shock or environmental profile and uploading the data for analysis thanks to the new and intuitive innSoft-Analyzer software. This information can be used later in the design/optimization of the packaging to guarantee the safety of the goods. In addition, DR4-03 model includes environmental sensors to better characterize the actual conditions of the distribution cycle.

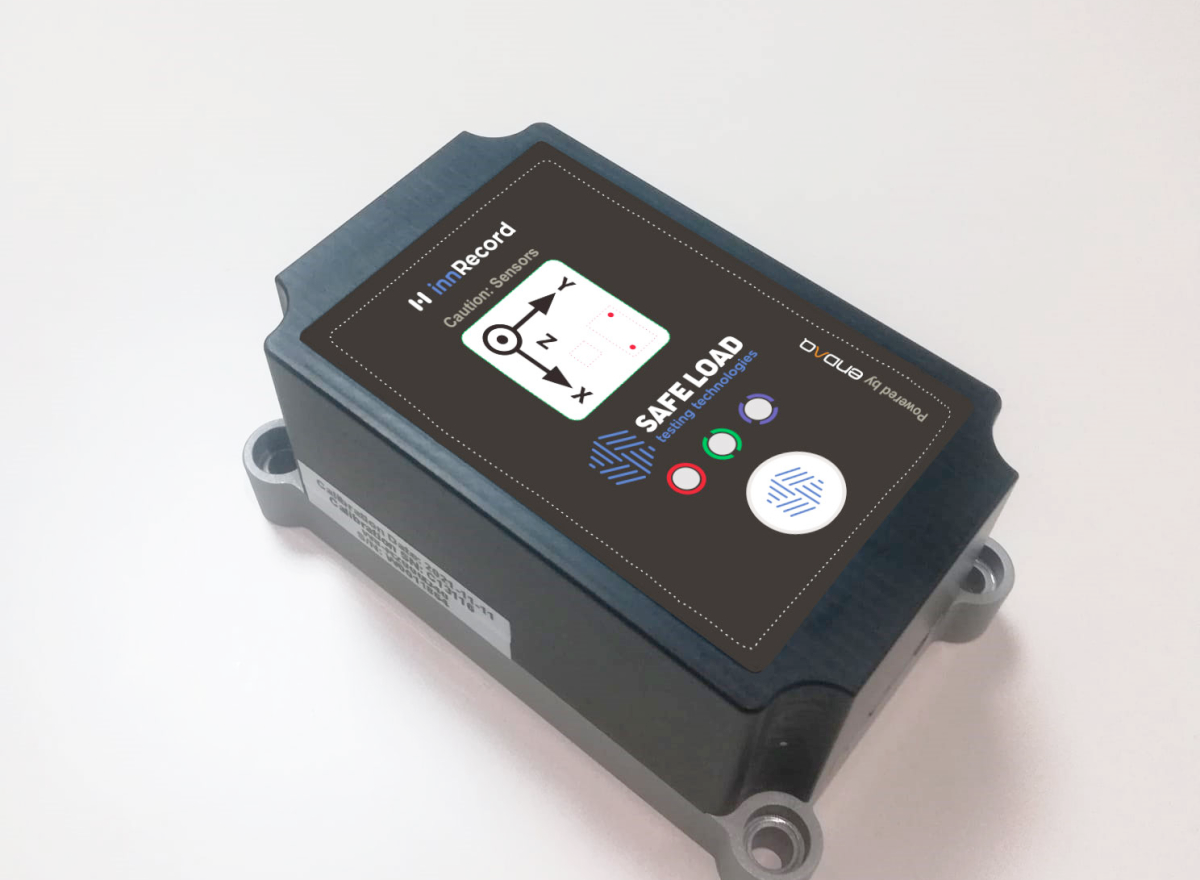

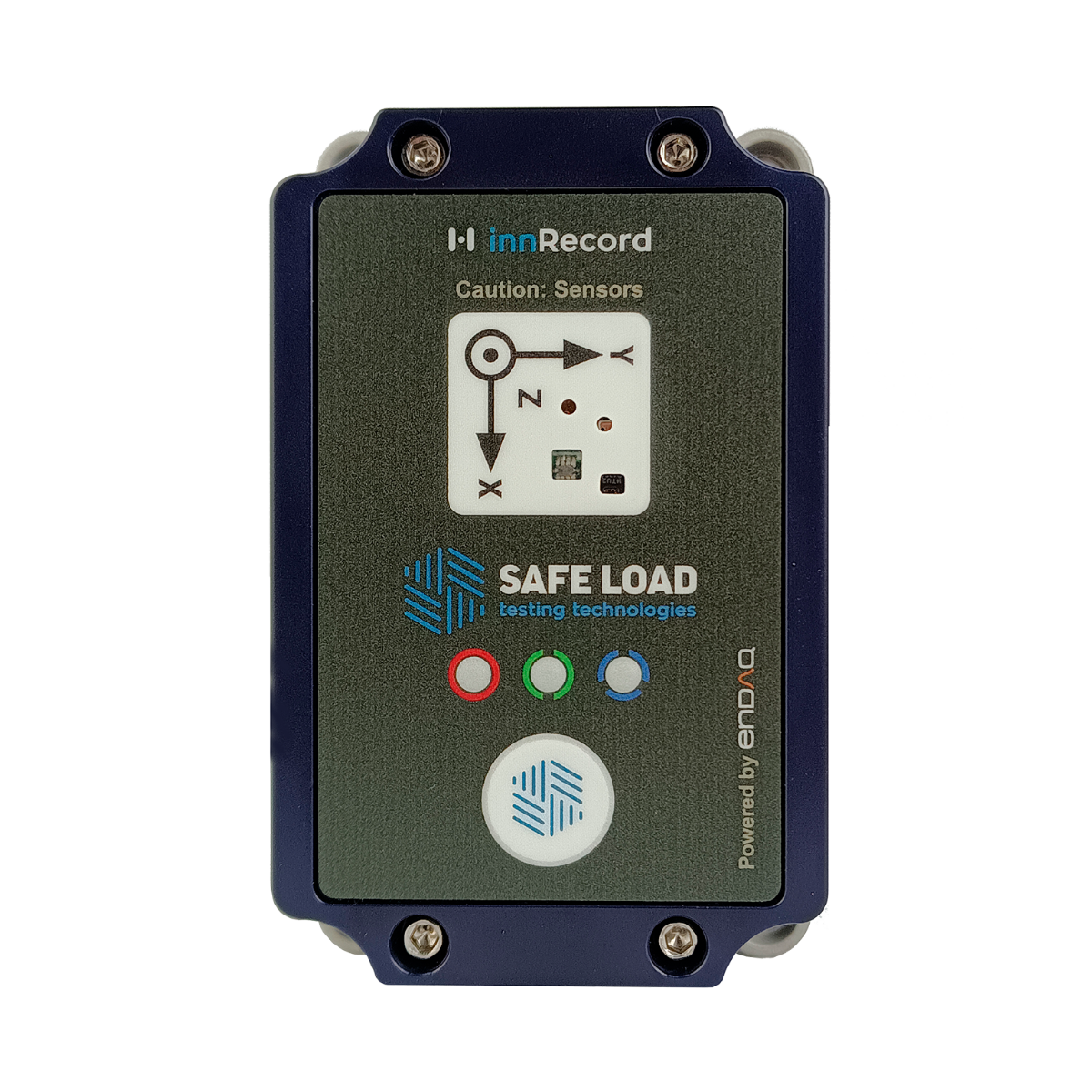

DR4-03 Environmental, shock & vibration data recorder

New designs make the DR4 Shock and Vibration Data Recorders a unique solution capable of continuously recording triaxial vibrations, accelerations, pitch and roll motions, and shocks inside trucks, ships, or aircraft during the supply chain.

The innRecord family can record routes based on strength and frequency of vibrations during transport (PSD) in 3 dimensions and rotation in 2 axes (pitch and roll).

All data is recorded and the recorded routes can be reproduced in the vibration simulator tester for packaging optimization. In addition, the collected data can be used with the innDrop, innSlide, inWave and innShock families to reproduce the transport conditions that the cargo undergoes.

General Product characteristics

More integrated sensors – All included in the unit

Leading the market, the new DR4 models include more impressive sensors, such as the gyroscope or the magnometer.

• Gyroscope to measure inclination and velocitity change on Pitch, Rall, Yaw with sampling rate up to 3200 Hz.​
• Magnetometer.​
• Pressure / Temperature / Humidity.​
• Light (Useful to know if the package or vehicle has been opened. This sensor is capable of capturing the intensity of visible and ultraviolet light at a rate of 4 Hz. This sensor is not calibrated and is intended for rough, relative measurements only).​
• GPS (can record: Latitude and Longitude; Speed in m/s; Epoch time).​
• Microphone (records at same rate as the other channels (up to 20 kHz)).

Longer Recording Time thanks to its Rechargeable Battery Life that Lasts for Many Days​

• ​Long life battery, from 7 days at REAL continuous time monitoring at 1000 hz sampling frequency up to more than 2 years with 99% triggering time. Calculate the life of the battery in your particular case here. ​
• Extend battery life with external power.​
• The DR4-03E has a Li-ion 4,000 mAh battery from Saft, the MP 174565 xtd. This battery is much more stable at low-temperature than other batteries.​
• Triggering from Sensors and/or Time-Based​
• Simple USB Interface for Download & Charging​

Innovative analyzer software innSoft, developed by Safe Load Testing Technologies

Intuitive and easy-to-use software for the analysis of transportation simulations (vibrations, bumps, pitch and roll)

• Generates an automatic report, profile and charts.
• Includes a box tool to obtain PSD breakpoints for shaker simulation. With the tools of the box it is easier and faster to obtain personalized PSDs according to:
  • PSD for three orthogonal axes for 100% CDF events.
  • PSD for three orthogonal axes for the events of the highest 20% and the lowest 80% of CDF
  • Chance PSD overlays at 80%, 90%, 95%, 99%, and 100% “at or below levels.”
  • Statistical distribution of the RMS level
• Quick and easy setup, quick scan and batch file conversion:
  • FFT analysis, PSD, Spectrogram, Digital filtering.
  • Export data to CSV and Matlab.

Convenient, adaptable, and reliable: Intuitive operation and sensors that can go anywhere

The Data Recorder DR4 has been developed for Product & Testing Engineers to quickly and accurately characterize a vibration, shock or
environmental profile and uploading the data for analysis thanks to the new and intuitive innSoft-Analyzer software. This information can be used later in the design and optimization of the packaging to guarantee the safety of the goods
