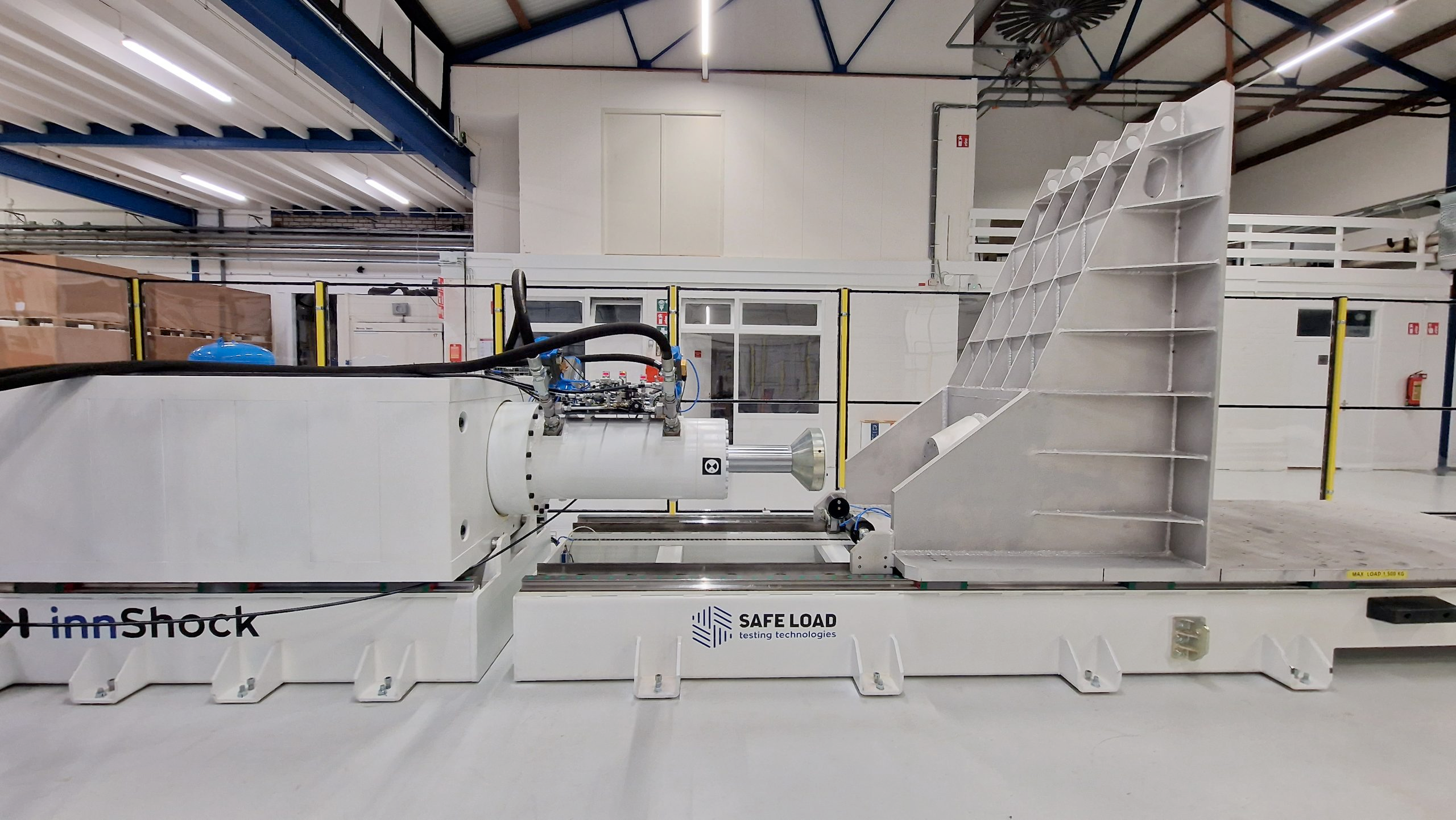

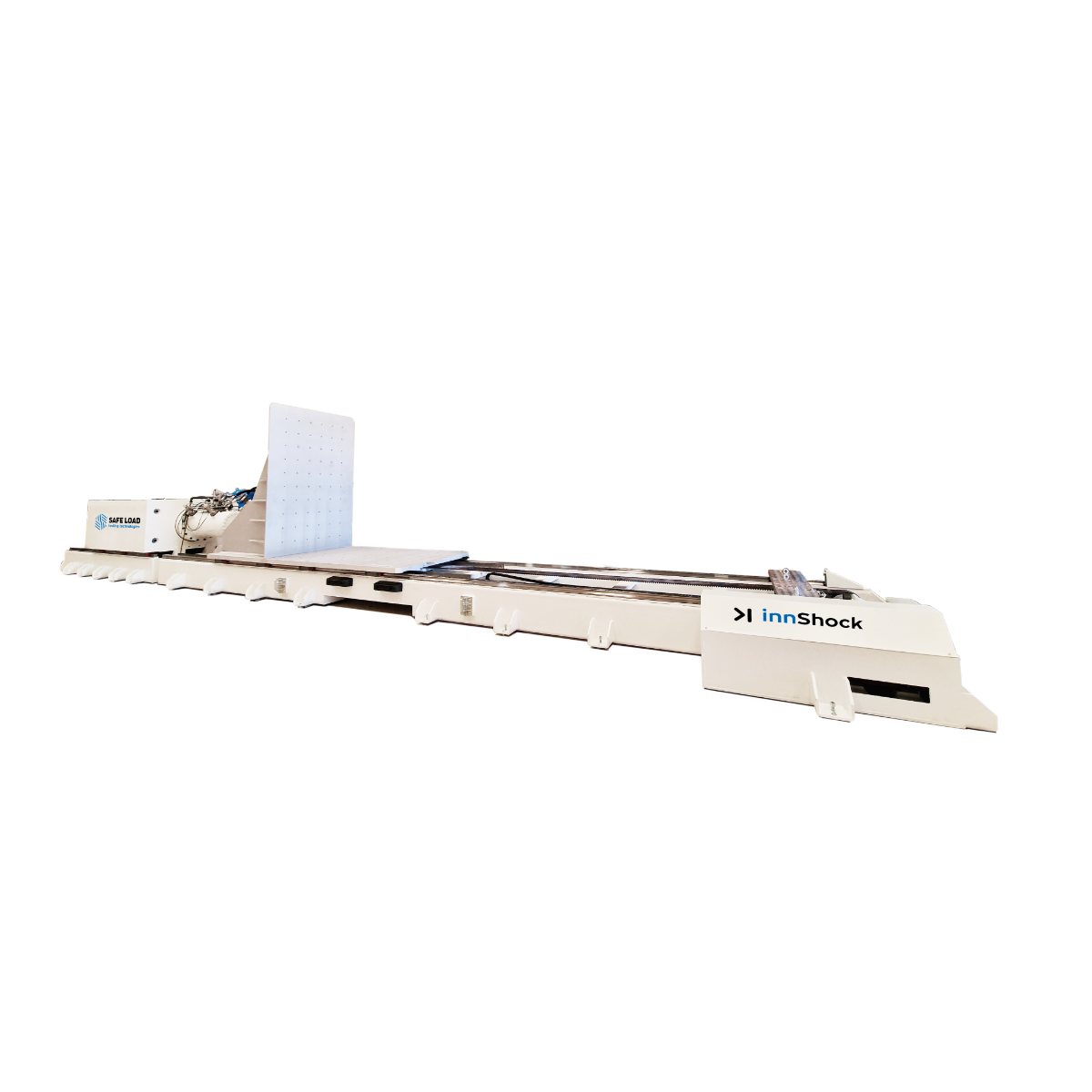

The Horizontal Impact Tester assesses the strength and stability of loads against sudden impacts. Its advanced design and programmable controller enable precise customization of the impact pulse. This type of testing is essential to replicate real-world conditions—such as sudden braking, quick accelerations, and abrupt movements—ensuring your products remain secure and intact throughout transport.

Shock tests determine the resistance of a package against sudden, abrupt shocks and impacts during shipping and handling.

The Horizontal Impact Tester allows to control the shocks to analyze the behavior of the load, generating economic savings for companies.

Powerful impact tester with max load capacity of 2,000 kg, up to 4 m/s impact speed, independent impact controller, shock isolation, automatic test report generation, and intuitive controller. Optional inclusion of INNVISION ST system for unit load deformation measurement and reporting. Additional options include temperature and humidity probe. Supports a wide range of impact tests, including ASTM D4169 and ISTA procedures.

Why choose the Safe Load TT Horizontal Impact Tester?

Customizable Impact Pulse Programming and Operational Safety

The system integrates computer-controlled software that enables precise adjustment of acceleration profiles and impact pulse parameters. Iy simplifies test setup, execution, and automated report generation. Built-in safety features ensure secure operation in both laboratory and industrial environments. The impact isolation system minimizes unwanted vibrations, ensuring repeatable results with high test accuracy.

Wide Speed Range for Testing Flexibility

The system supports adjustable impact speeds up to 3,6 m/s (8.05 mph), allowing the recreation of a broad range of transportation scenarios — from low-speed handling incidents to high-intensity collisions. This wide operational range ensures that packaging systems are tested under the full spectrum of potential shipping and handling conditions, enhancing product resilience during transit.

High Load Capacity for Reliable Testing

With a maximum load capacity of up to 2,500 kg (5,512 lb), the Horizontal Impact Tester is capable of testing both small packages and heavy palletized goods. This enables manufacturers to validate packaging integrity and stability for a wide variety of product types and load configurations commonly encountered in global logistics chains.

Flexible Configurations and Expansion Options

Safe Load Testing Technologies provides flexible configurations and optional modules that allow companies to adapt testing capabilities to different packaging requirements and evaluation scenarios. Optional modules such as innVision enable high-speed video capture and deformation analysis. Additional options include temperature and humidity sensors, as well as an impact trolley with speed sensor. This comprehensive setup allows for a deeper evaluation of packaging performance under combined mechanical and environmental stresses.

Impact test suported

• ASTM D4169 Standard practices for performance testing of shipping containers and systems
• ISTA Procedures 1A, B, C, E, G, H; 2A, B, C; 3B, E, K; 4 Series; 6-SAMSCLUB, 6-AMAZON.COM

Technical specifications

• Max load up to 2.000 kg.
• Up to 4 m/s speed impact.
• Independent impact controller
• Shock isolation
• Automatic test report generator.
• Intuitive controller

Optional

Temperature and humidity probe

innVision ST

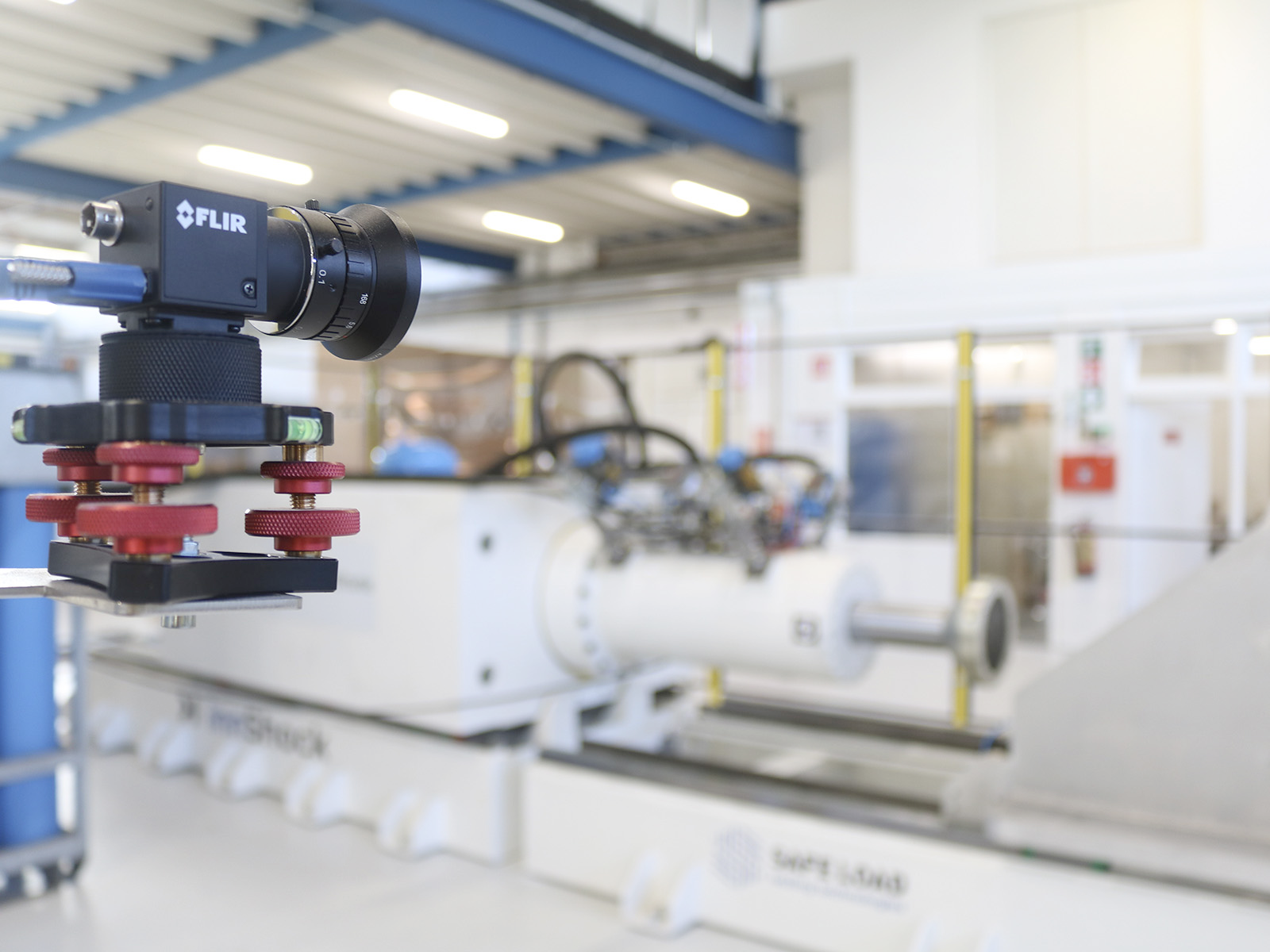

Optionally can be included the innVision ST system, a high-speed camera and software to measure the unit load deformation and creates a report.

High-Performance Impact Tester: Max Load 2,000 kg, 4 m/s Speed, INNVISION ST Option, and Versatile Testing Capabilities
