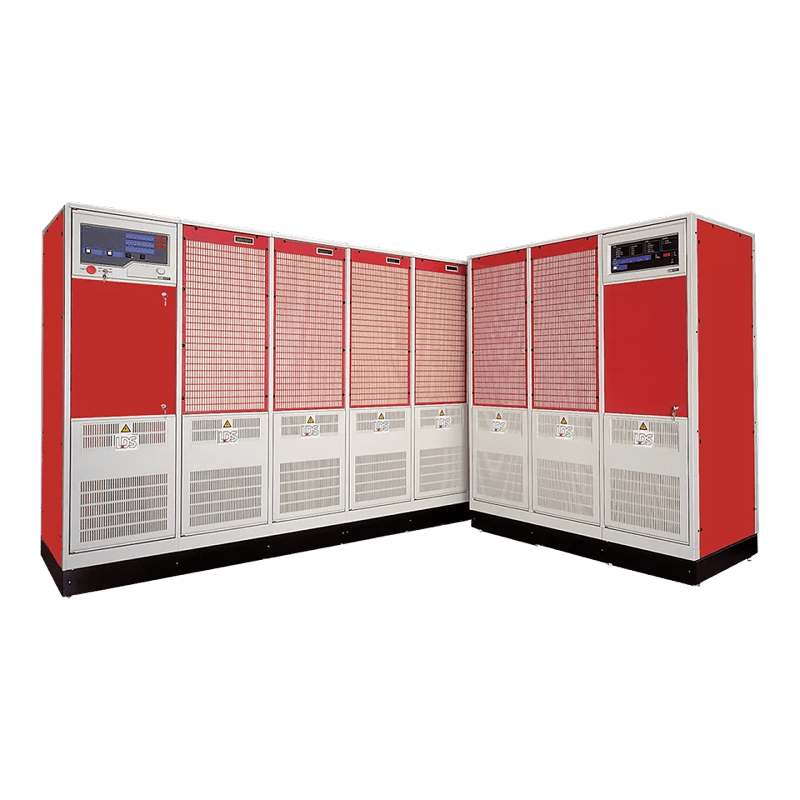

Specifically designed to supply LDS® V900 high-force shakers with the signal they require to perform at optimal levels, these amplifiers combine strength, efficiency and adaptability. Featuring a Class-D rating, they deliver maximum power with minimal energy waste and lower running costs. Compatible with third-party vibration systems and suitable for multi-shaker applications, LDS® DPA-K amplifiers are modular and scalable, allowing you to easily and economically increase their power capacity to meet future needs without having to replace the entire unit.

USE SCENARIOS

• Driving LDS® high-force shakers V964, V984 and V994
• Driving third-party shakers with ratings of at least 89 kN (20,000 lbf)

CHARACTERISTICS

• Power output range from 70 to 280 kVA
• Can be uprated in increments of 8 kVA by adding extra power modules
• Over 90% energy-efficient
• Full-power frequency range
• Low distortion, wide bandwidth (20Hz to 3kHz @ -3dB), and signal-to-noise ratio better than -68dB
• Peak-current rating of 3-sigma to ISO standards
• Optional remote control panel with reach of up to 200 metres (656 feet)
• Configurable interlocks for comprehensive system-monitoring and safe shutdown
