Extremely rugged data logger and powerful data processing computer with IP67 degree of protection and wide temperature rating of -40 to +50 °C. SBOX waterproof is a perfect companion to the SIRIUS waterproof data acquisition systems.
Highlights
IP67 Degree of Protection
SBOX waterproof is designed for testing in extremely harsh environments. The unit is waterproof, dustproof, and can withstand shocks up to 100G.
-40 to 50 °C
Extreme testing means extreme temperatures. SBOX waterproof is ready.
Highly Reliable SSD Storage
SBOX provides highly reliable data recording with typical 180 MB per second write speed straight into a built-in fast SSD drive. SSD drive is removable so you can swap and replace it quickly.
Performance Computer
With a built-in Intel Core i7 CPU and 8GB memory, the SBOX waterproof is also a very capable computer for worry-free, real-time data processing.
5 USB Ports
SBOX includes five USB 2.0 ports. All USB ports feature screw-lock connectors.
3 Network Interfaces
Two gigabit LAN ports and wireless WLAN interface with external antenna ensure maximum connectivity.
EtherCAT Interface
Built-in EtherCAT interface port with synchronization for USB and EtherCAT DAQ devices like SIRIUS waterproof and KRYPTON.
Integrated GNSS with RTK
All portable DAQ systems can be equipped with an optional 10Hz or 100Hz GNSS receiver, allowing for precise GPS positioning in navigational testing applications. These GNSS receivers also offer optional RTK support, which can enhance positioning accuracy to 1 cm.
Software included
Every Dewesoft data acquisition system is bundled with award-winning DewesoftX data acquisition software. The software is easy to use but very rich and deep in functionality. All software updates are free forever with no hidden licensing or yearly maintenance fees.
Dewesoft quality and 7-year warranty
Enjoy our industry-leading 7-year warranty. Our data acquisition systems are made in Europe, utilizing only the highest build quality standards. We offer free and customer-focused technical support. Your investment into the Dewesoft solutions is protected for years ahead.

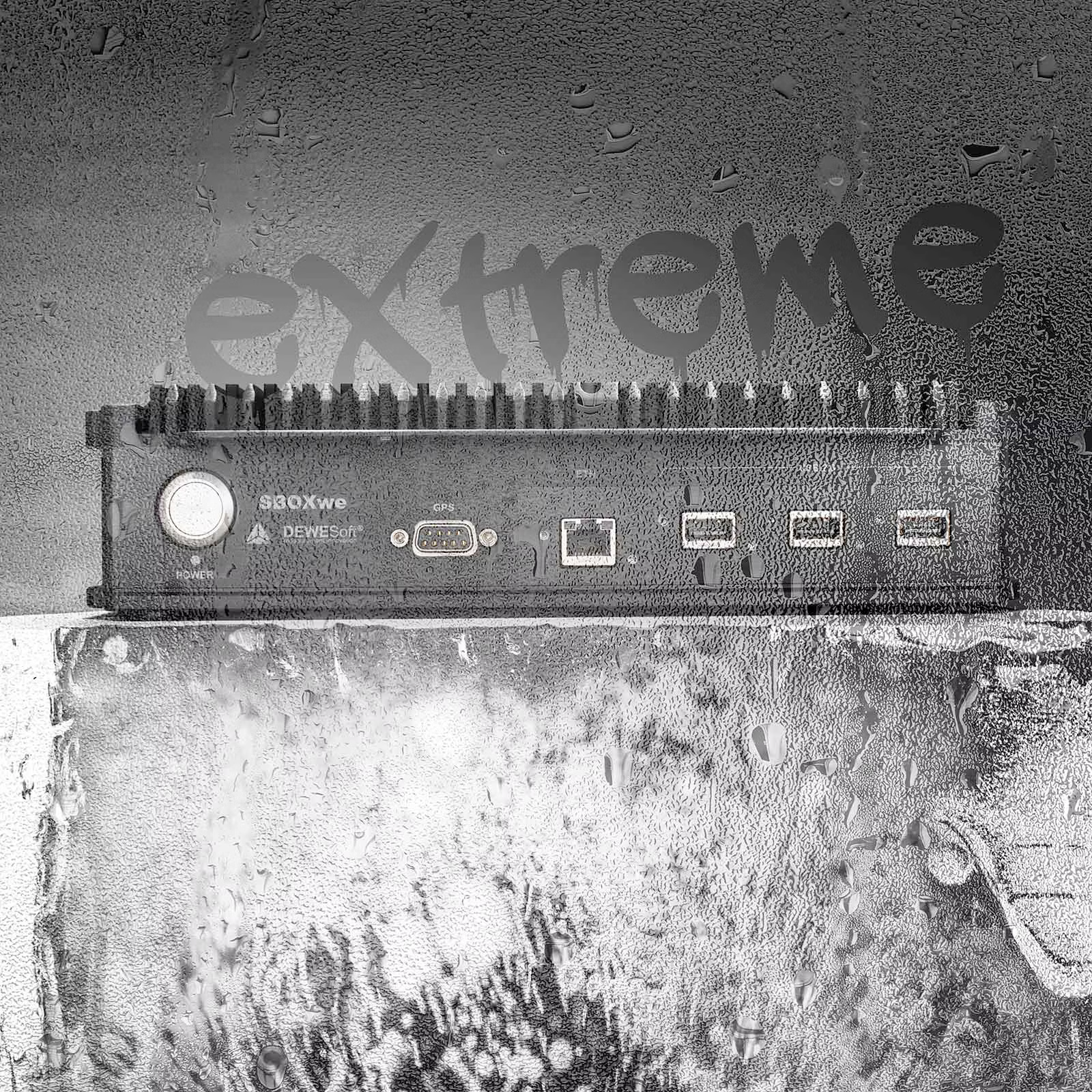

Ultra Rugged Data Logger
SBOX waterproof is an ultra-rugged data logger and data processing computer. It was designed to work hand in hand with SIRIUS waterproof DAQ instrument.
SBOX waterproof has an IP67 degree of protection and is fully sealed and thus water, shock, and dust proof. It can withstand high shocks up to 100G and can work in -40 to +50 °C.
SBOX waterproof will never let you down and you can finally be worry-free for your extreme testing needs.
High Processing Power and Performance
With the fast multi-core Intel Core i3 or optional Core i7 processor running at 1.7 GHz with 3MB L1 memory and 8GB RAM, SBOXw delivers more than enough processing power for all your real-time data visualization and processing needs.
Highly optimized Dewesoft X DAQ software will take maximum advantage of the latest Intel CPU technologies built into SBOX waterproof. SBOX waterproof will have no problem running visually rich and fluent graphics, smooth workflows, and offer some advanced real-time mathematics on your data.

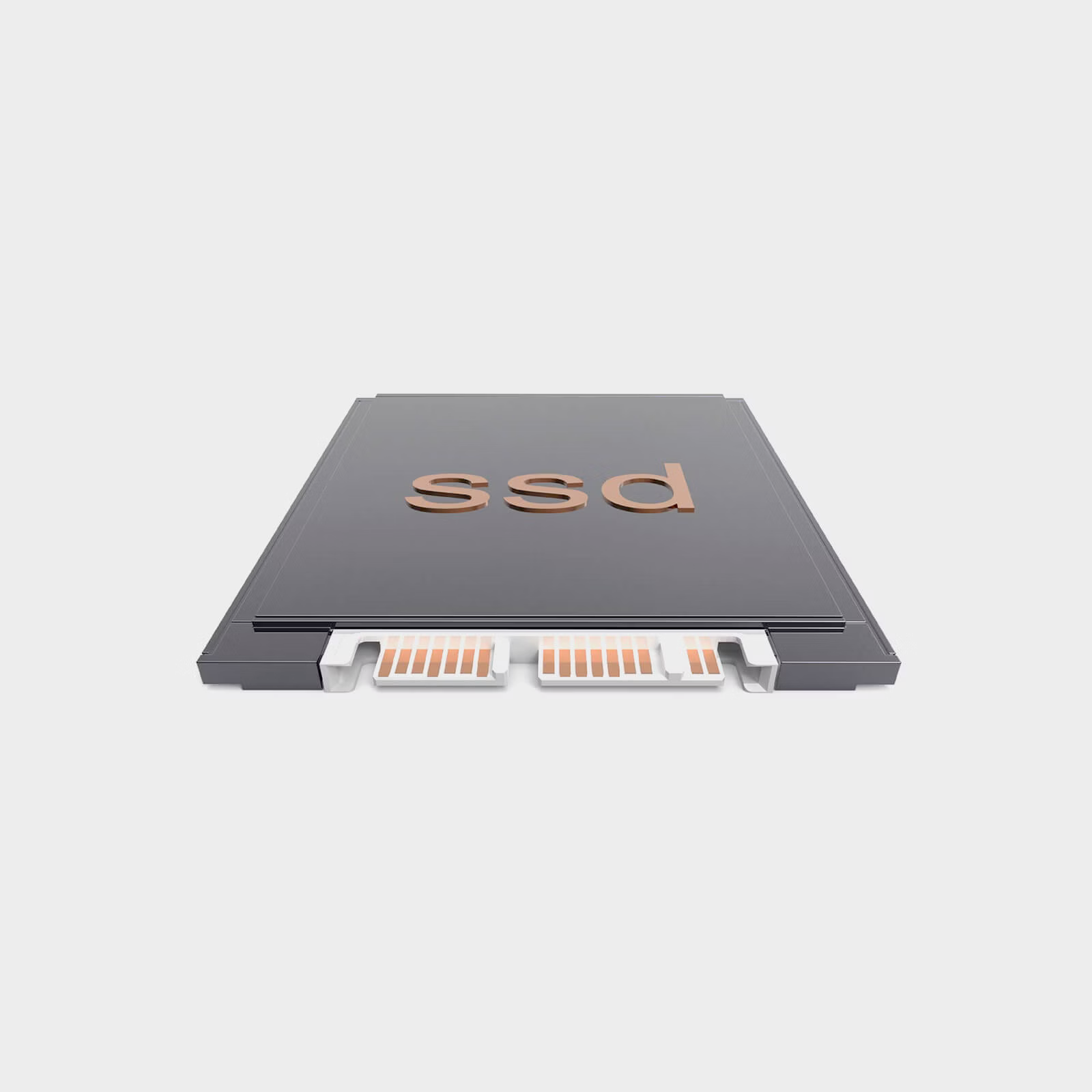

Reliable SSD Data Logging
This unit includes high performance and a highly reliable 256 GB SSD data storage unit. With a typical 180 MB/s write rate, there is enough capacity to store hundreds of channels at high speed including high-speed video.
A built-in SSD hard drive can withstand very high shocks and vibrations (up to 100G RMS) so you can be always sure that your data is safe no matter the testing conditions and harsh environment.

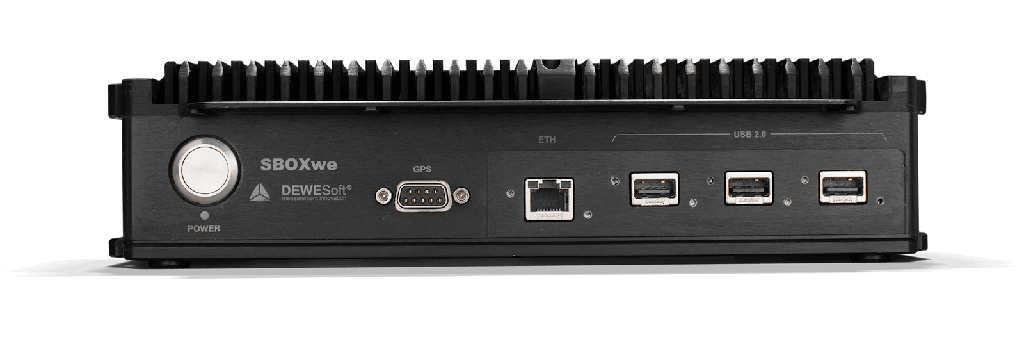

Endless Connectivity
SBOX waterproof includes all today's standard connectivity interfaces. Five USB 2.0 ports are available for connecting peripheral devices or up to five USB data acquisition systems like SIRIUS waterproof or standard SIRIUS DAQ slices.
For the network connectivity, SBOX waterproof includes two gigabit LAN interfaces (GLAN) and one WiFi adapter for wireless LAN.

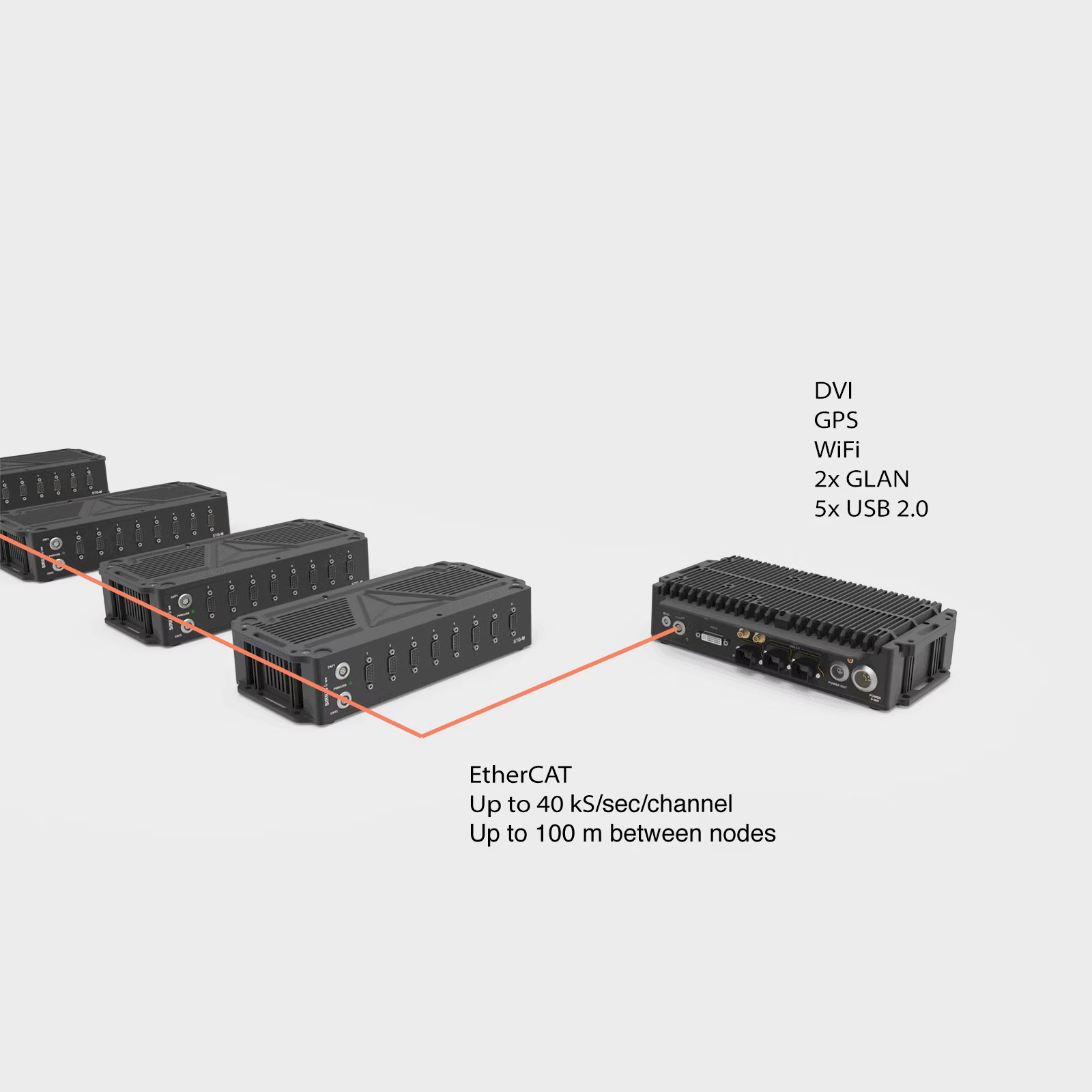

Additional full-duplex EtherCAT slave port serves as the direct expansion of our EtherCAT DAQ devices like KRYPTON DAQ modules or SIRIUS waterproof slices running on EtherCAT. EtherCAT DAQ devices can be daisy-chained and distributed directly out of the SBOX waterproof to form a standalone data acquisition system. Only one cable is required from the SBOX waterproof to provide data bus, power, and synchronisation to all DAQ modules.
Integrated GNSS positioning with RTK correction
SBOX computers can optionally be equipped with a 10 Hz or 100 Hz GNSS receiver for precise position measurement applications. GNSS receivers can optionally also be configured to support RTK correction (Real-Time Kinematics).
GNSS receiver option will transform your data acquisition system and makes it ideal for precise position-based test and measurement applications. The RTK correction option will improve the positioning accuracy down to 1 cm.
SBOX with GNSS receiver will transform the data acquisition system into a powerful automotive data logger for advanced position-based test and measurement applications such as:
- Brake testing
- ADAS testing
- Pass-by-noise
- Vehicle dynamics
- Road load data
- and others.
Ultra Rugged Data Acquisition Systems

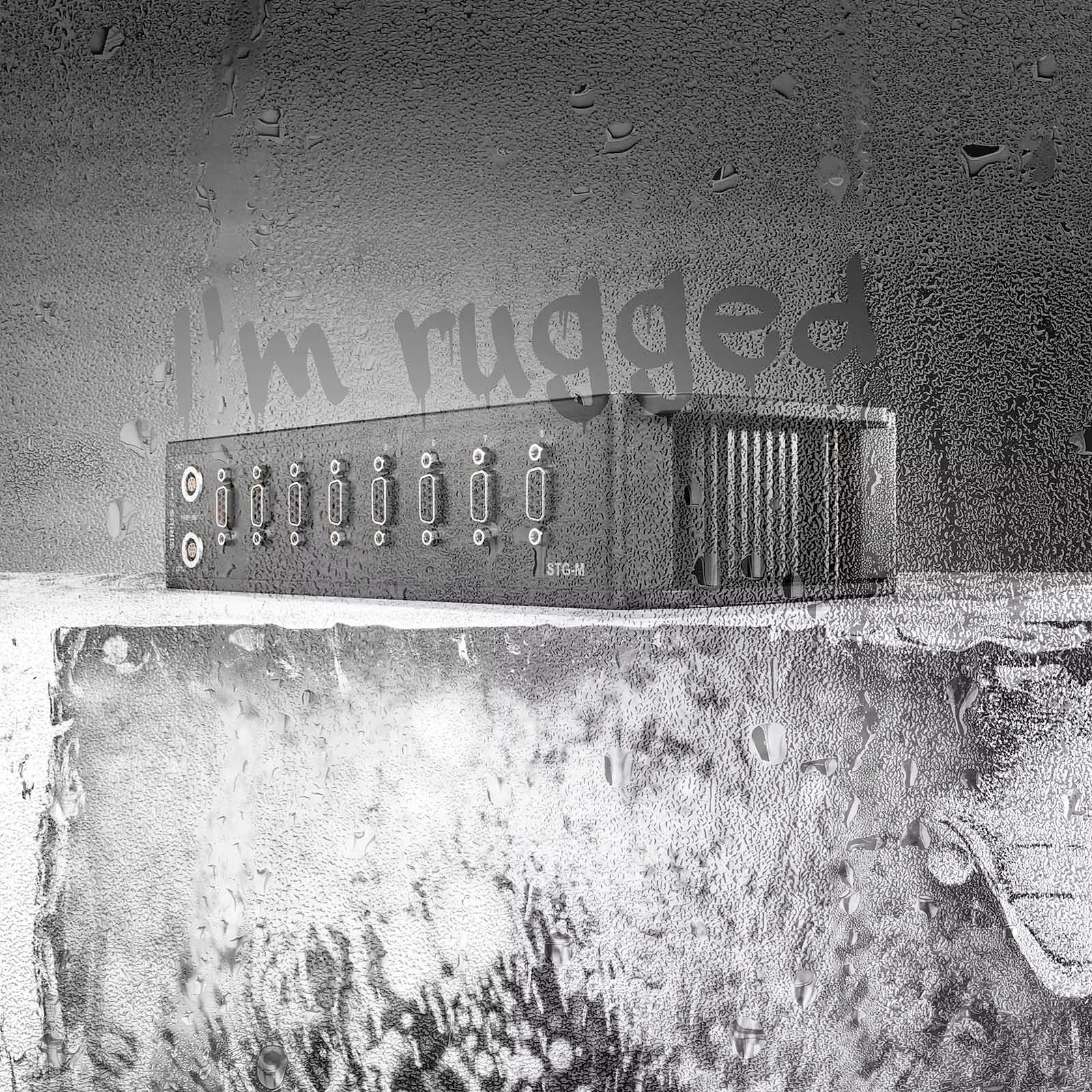

SBOX waterproof was designed to work hand in hand with the ultra-rugged SIRIUS waterproof data acquisition systems. The two combined form a unique, ultra-rugged, standalone data acquisition system for testing in the harshest environments.
Both devices work together like magic. SIRIUS waterproof modules offer high dynamic amplifiers for IEPE, voltage and strain gage sensors. Additionally, you can use our DSI adapters for other types of signals such as RTD, PTx, thermocouple, charge, LVDT, current, and more.
Included award-winning data acquisition software is also known to be the best in class. All these factors make our rugged instrument line the best data acquisition solution for testing in harsh and extreme environments.
