EA-BT 20000 Series

The Ultimate High-Performance, High-Capacity Bidirectional Power Supply with Integrated Battery Safety Functions

Introducing the EA BT-20000, Available in Single or Triple Channel Options

Welcome to the world of high-performance DC battery testing. The BT-20000 series provides an integrated solution designed for maximum efficiency.

The BT-20000 Series Bidirectional Power Supply by EA Elektro-Automatik is a state-of-the-art regenerative battery tester designed to meet the demands of modern battery technology. With an impressive efficiency of over 96%, this series offers a wide range of features that make it a versatile choice for various applications, from electro-mobility to battery recycling. The BT-20000 Series stands out for its high efficiency, wide range of features, and flexibility with single and triple output channels. Its regenerative energy recovery feature not only makes it eco-friendly but also cost-effective.

Maximum Efficiency Battery Tester

Maximum Efficiency

The EA-BT 20000 series offers three channels at 600A each, or they can be paralleled for 1800A. This allows for simultaneous testing of up to three battery packs, each with a power capacity ranging from 4 kW to 30 kW

High-Precision Battery Tester BT-20000

High-Precision

Accuracy is critical when measuring the State of Health (SOH) and End of Life (EOL) of batteries. The EA-BT 20000 series ensures the highest level of accuracy and reliability in data reproduction.

Maximum Efficiency Battery Tester

Unmatched Speed

With a 1ms communication speed, the EA-BT 20000 series bidirectional power supply maximizes throughput, while saving you time and money from additional equipment.

Versatile Applications Across Multiple Industries

High-Precision Battery Tester BT-20000

Battery Recycling

Achieve maximum deep discharge before final recycling, even at voltages below 2V.
Maximum Efficiency Battery Tester

Battery Testing

From SOH to EOL testing, the EA-BT 20000 is your go-to device for comprehensive battery analysis. Safety features include polarity check and voltage balancing.
BT-20000 Battery tester used in battery simulation testing

Battery Simulation

Simulate batteries as single cells, modules, or packs for optimal design and testing capabilities.

Key Features

Wide Input Range: 208 V – 480 V, +10%, 3-phase AC

Regulation Modes: CV, CC, CP, CR with fast crossover

Active Power Factor Correction: Typical 0.99

High-Resolution Digital Regulation: 16-bit ADCs and DACs

Regenerative Energy Recovery: In discharge operation

Built-in Interfaces: USB, Ethernet 1Gbit/s, EtherCAT, CAN FD

High Performance: Single Output up to 30,000A

Master-Slave-Bus: For parallel operation

Software Support: EA-Power Control, EA-Battery Simulator

Safety: Polarity Check, Voltage Balancing, and Contactor Control

BT-20000

Technical Specifications

General

AC Input: 380 V – 480 V 10%, 3-phase AC

Frequency: 45 – 65 Hz

Power Factor: ~0.99

Leakage Current: <10 mA

Phase Current: 56 A @ 400 V AC

DC Output:

Voltage Range: 0 – 10 V up to 0 – 2000 V

Current Range: 0 – 40 A up to 0 – 1000 A

Power Range: Up to 30,000 W

Connectivity

USB: For quick data transfer

Ethernet 1Gbit/s: For network connectivity

EtherCAT: For real-time control

CAN FD: For automotive applications

Safety and Compliance:

Over voltage Protection: Adjustable 0 – 110% UNominal

Overcurrent Protection: Adjustable 0 – 110% INominal

Overpower Protection: Adjustable 0 – 110% PNominal

Overtemperature Protection: DC output shuts down in case of insufficient cooling.

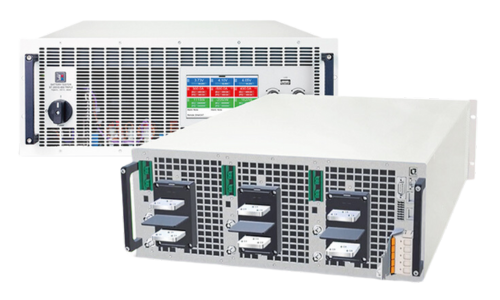

EA-BT 20000 with 3U Power

Model
Voltage
Current
Power
BT 20010-600
0 - 10 V
0 - 600 A
0 - 6000 W
BT 20060-500
0 - 60 V
0 - 500 A
0 - 15000 W
BT 20080-500
0 - 80 V
0 - 500 A
0 - 15000 W
BT 20200-210
0 - 200 V
0 - 210 A
0 - 15000 W
BT 20360-120
0 - 360 V
0 - 120 A
0 - 15000 W
BT 20500-90
0 - 500 V
0 - 90 A
0 - 15000 W
BT 20920-60
0 - 920 V
0 - 60 A
0 - 15000 W
BT 21000-40
0 - 1000 V
0 - 40 A
0 - 15000 W
BT 21500-30
0 - 1500 V
0 - 30 A
0 - 15000 W
BT 22000-20
0 - 2000 V
0 - 20 A
0 - 15000 W

EA-BT 20000 with 4U Power

Datasheet
Model
Voltage
Current
Power
BT 20010-1000
0 - 10 V
1000 A
10000 W
BT 20060-1000
0 - 60 V
1000 A
30000 W
BT 20080-1000
0 - 80 V
1000 A
30000 W
BT 20200-420
0 - 200 V
420 A
30000 W
BT 20360-240
0 - 360 V
240 A
30000 W
BT 20500-180
0 - 500 V
180 A
30000 W
BT 20920-120
0 - 920 V
120 A
30000 W
BT 21000-80
0 - 1000 V
80 A
30000 W
BT 21500-60
0 - 1500 V
60 A
30000 W
BT 22000-40
0 - 2000 V
40 A
30000 W

EA-BT 20000 TRIPLE with 4U Power

Datasheet
Model
Voltage
Current
Power
BT 20010-400 Triple
0 - 10 V
400A per channel
4000W per channel
BT 20010-600 Triple
0 - 10 V
600A per channel
6000W per channel
BT 20060-340 Triple
0 - 60 V
340A per channel
10000W per channel
BT 20080-340 Triple
0 - 80 V
340A per channel
10000W per channel
BT 20200-140 Triple
0 - 200 V
140A per channel
10000W per channel
BT 20360-80 Triple
0 - 360 V
80A per channel
10000W per channel
BT 20500-60 Triple
0 - 500 V
60A per channel
10000W per channel
BT 20920-40 Triple
0 - 920 V
40A per channel
10000W per channel
