Overview
W5 Engineering partnered with Aurora to execute a comprehensive Road Load Data Analysis (RLDA) campaign to validate structural performance under real-world operating conditions.
The objective was to capture, correlate, and analyze mechanical loads experienced by the system using a synchronized network of:
- Strain gages
- Accelerometers
- Displacement sensors
- DEWESoft data acquisition
This enabled Aurora to translate real-world inputs into quantifiable engineering data for validation, durability assessment, and model correlation.
The Challenge
Aurora required a robust RLDA solution capable of accurately capturing complex loading behavior:
- Multi-Axis Load EnvironmentReal-world loading introduced combined effects:
- Bending
- Torsion
- Dynamic vibration
- Correlation Across Sensor TypesRequired precise time alignment between:
- Strain (structural response)
- Acceleration (dynamic excitation)
- Displacement (system-level movement)
- High-Fidelity Data Under Dynamic ConditionsNeeded to capture:
- Transient events
- Frequency-dependent behavior
- Peak load cases
- Deployment ConstraintsInstrumentation had to be:
- Durable
- Low-profile
- Non-intrusive to system operation
W5 Engineering Solution

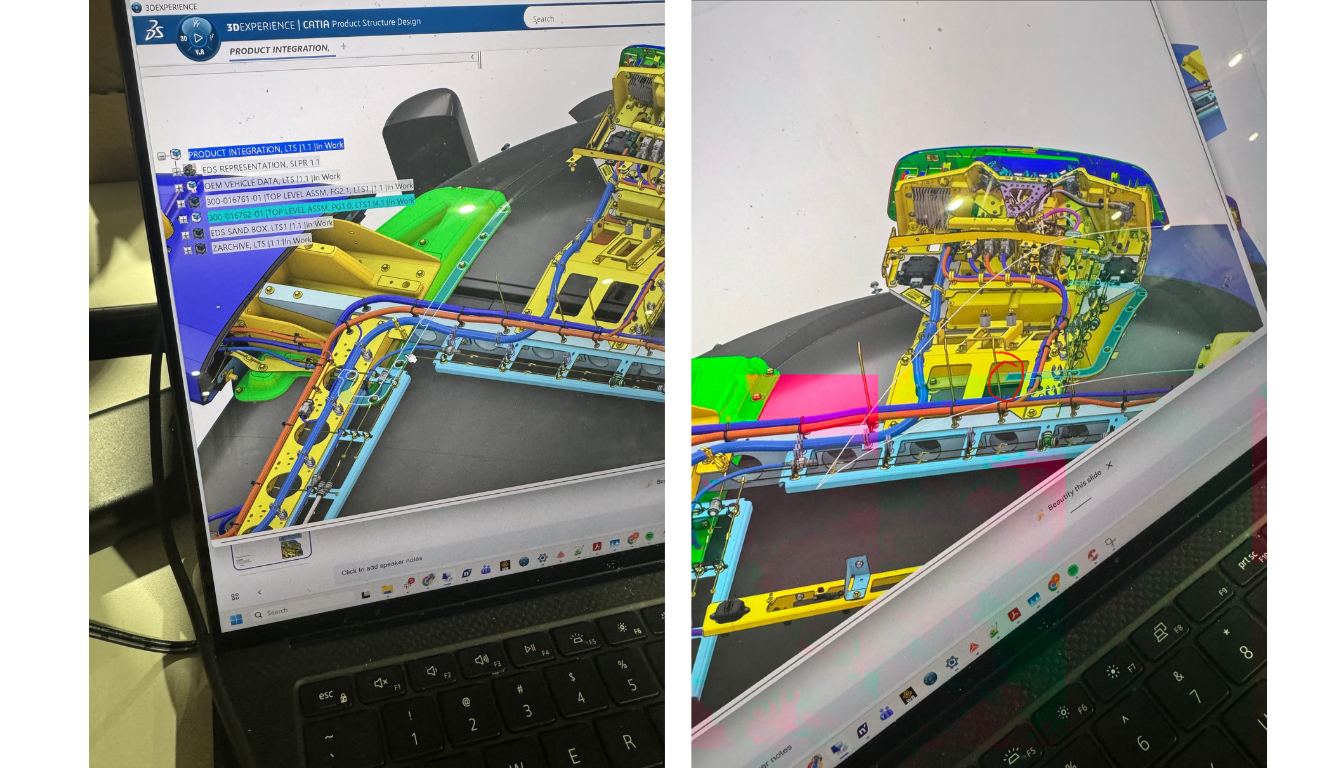

W5 delivered a complete RLDA measurement and validation framework, from sensor placement to data interpretation.

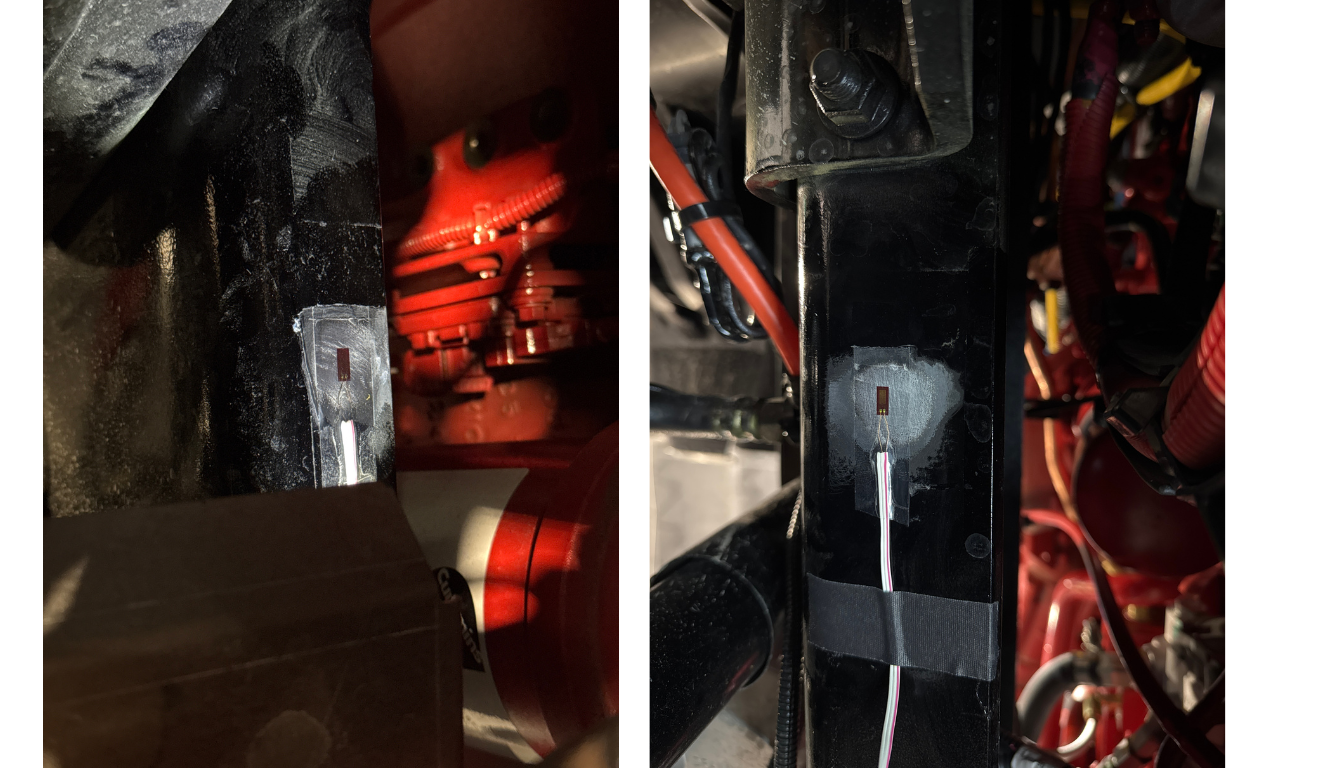

1. Strain-Based Load Measurement
W5 implemented a targeted strain gage strategy to quantify structural loads:
- Placement at critical load paths and stress concentration regions
- Use of:
- Uniaxial gages for directional strain
- Rosette gages (0°/45°/90°) for principal strain analysis
- Outputs enabled:
- Conversion of strain → stress and load estimation
- Identification of peak load conditions and fatigue drivers
2. Dynamic Input Characterization (Accelerometers)
To capture real-world excitation:
- Integrated IEPE accelerometers at key locations
- Ensured proper mounting for accurate frequency response
This allowed:
- Identification of vibration modes
- Detection of transient shock events
- Correlation between input excitation and structural response
3. Displacement & Deflection Tracking
W5 deployed displacement sensors to measure:
- Relative movement across interfaces
- System compliance under load
This provided:
- Validation of mechanical tolerances
- Insight into deflection-driven strain behavior
4. DEWESoft DAQ Integration
A synchronized DEWESoft data acquisition system formed the backbone of the RLDA effort:
- Simultaneous acquisition of:
- Bridge-based strain channels
- IEPE accelerometer inputs
- Analog displacement signals
- Configuration included:
- High sampling rates for dynamic capture
- Precise time synchronization across all channels
- Real-time monitoring during testing
- Signal integrity ensured through:
- Shielded cabling
- Proper grounding strategy
- Calibration verification
5. Road Load Data Analysis (RLDA)
W5 translated raw data into actionable engineering insights:
- Time-domain analysis
- Peak strain and load identification
- Event-based evaluation
- Frequency-domain analysis (FFT)
- Identification of dominant vibration frequencies
- Resonance detection
- Cross-channel correlation
- Linking acceleration inputs to strain response
- Understanding cause-and-effect relationships
- Load case extraction
- Defining representative load cycles for durability testing
- Supporting downstream simulation and replication
Results
W5 Engineering enabled Aurora to:
- Accurately quantify real-world load conditions
- Correlate structural response with dynamic inputs
- Identify critical load cases and stress drivers
- Generate high-quality datasets for model validation and durability analysis
Key Outcomes
- Full RLDA dataset with synchronized multi-sensor inputs
- Clear understanding of load paths and structural behavior
- Identification of peak and fatigue-relevant events
- Data ready for simulation correlation and test replication
Why W5 Engineering
W5 goes beyond instrumentation—we deliver engineering clarity:
- Deep expertise in strain-based load measurement
- Proven capability in dynamic system analysis
- Seamless integration of multi-sensor DAQ systems
- Ability to translate data into actionable validation insights
Applications
W5 RLDA solutions support:
- Vehicle and mobility platforms
- Aerospace structural validation
- Defense systems testing
- Industrial equipment durability analysis
